MS7682 - Video Amplifier And Video Coaxial Control Decoder

Product Overview

📥 Download Datasheet

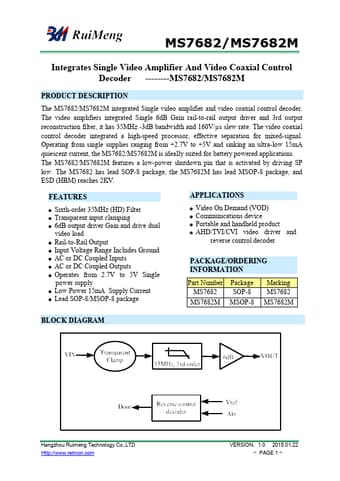

MS7682 Video Amplifier And Video Coaxial Control Decoder by Ruimeng - Datasheet Preview — Datasheet preview – MS7682

Datasheet Details

Part number	MS7682
Manufacturer	Ruimeng
File Size	406.87 KB
Description	Video Amplifier And Video Coaxial Control Decoder
Datasheet	MS7682 Datasheet
Additional preview pages of the MS7682 datasheet.

Product details

Description

The MS7682/MS7682M integrated Single video amplifier and video coaxial control decoder.

Features

a low-power shutdown pin that is activated by driving SP low. The MS7682 has lead SOP-8 package, the MS7682M has lead MSOP-8 package, and ESD (HBM) reaches 2KV.
