MS7338MA - HD/FHD Selectable Video Filter Driver

Product Overview

📥 Download Datasheet

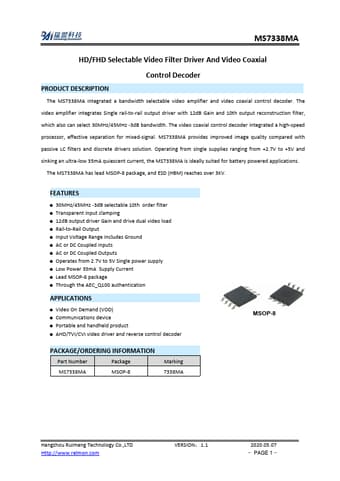

MS7338MA HD/FHD Selectable Video Filter Driver by Ruimeng - Datasheet Preview — Datasheet preview – MS7338MA

Datasheet Details

Part number	MS7338MA
Manufacturer	Ruimeng
File Size	439.89 KB
Description	HD/FHD Selectable Video Filter Driver
Datasheet	MS7338MA Datasheet
Additional preview pages of the MS7338MA datasheet.

Product details

Description

The MS7338MA integrated a bandwidth selectable video amplifier and video coaxial control decoder.

Features

30MHz/45MHz -3dB selectable 10th order filter.
Transparent input clamping.
12dB output driver Gain and drive dual video load.
Rail-to-Rail Output.
Input Voltage Range Includes Ground.
AC or DC Coupled Inputs.
AC or DC Coupled Outputs.
Operates from 2.7V to 5V Single power supply.
Low Power 35mA Supply Current.
Lead MSOP-8 package.
Through the AEC_Q100 authentication.
