MS7336M - HD/FHD Selectable Video Filter Driver

Product Overview

Datasheet Details

Part number	MS7336M
Manufacturer	Ruimeng
File Size	377.67 KB
Description	HD/FHD Selectable Video Filter Driver
Datasheet	MS7336M Datasheet

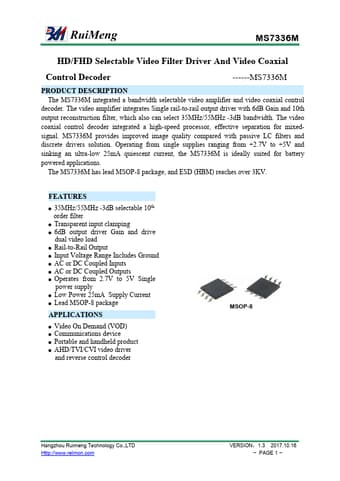

Additional preview pages of the MS7336M datasheet.

Product details

Description

The MS7336M integrated a bandwidth selectable video amplifier and video coaxial control decoder.The video amplifier integrates Single rail-to-rail output driver with 6dB Gain and 10th output reconstruction filter, which also can select 35MHz/55MHz -3dB bandwidth.The video coaxial control decoder integrated a high-speed processor, effective separation for mixedsignal.MS7336M provides improved image quality compared with passive LC filters and discrete drivers solution.Operating from single su

Features

35MHz/55MHz -3dB selectable 10th order filter.
Transparent input clamping.
6dB output driver Gain and drive dual video load.
Rail-to-Rail Output.
Input Voltage Range Includes Ground.
AC or DC Coupled Inputs.
AC or DC Coupled Outputs.
Operates from 2.7V to 5V Single power supply.
Low Power 25mA Supply Current.
Lead MSOP-8 package.
