MS7336MA - HD/FHD Selectable Video Filter Driver

Description

The MS7336MA integrated a bandwidth selectable video amplifier and video coaxial control decoder.

The video amplifier integrates Single rail-to-rail output driver with 6dB Gain and 10th output reconstruction filter, which also can select 35MHz/55MHz -3dB bandwidth.

Features

  • 35MHz/55MHz -3dB selectable 10th order filter.
  • Transparent input clamping.
  • 6dB output driver Gain and drive dual video load.
  • Rail-to-Rail Output.
  • Input Voltage Range Includes Ground.
  • AC or DC Coupled Inputs.
  • AC or DC Coupled Outputs.
  • Operates from 2.7V to 5V Single power supply.
  • Low Power 34mA Supply Current.
  • Lead MSOP-8 package.
  • Through the AEC_Q100.
  • authentication.

📥 Download Datasheet

Datasheet Details

Part number MS7336MA
Manufacturer Ruimeng
File Size 439.98 KB
Description HD/FHD Selectable Video Filter Driver
Datasheet download datasheet MS7336MA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS7 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RUBYCON CORPORATION
MS7200 HD to Digital RGB/YUV MACRO SILICON
MS7212 PRESSURE SENSOR DIE Measurement
MS7212-A2 Hermetic Pressure Sensor Die Measurement
MS74181 Power Inductor Fenghua Advanced Technology

Other Datasheets by Ruimeng

Part Number Description
MS7336M HD/FHD Selectable Video Filter Driver
MS7332M Integrated Single Video Amplifier And Video Coaxial Control Decoder
MS7335M Integrated single-channel video op-amp
MS7337M Integrated single-channel video op-amp
MS7338MA HD/FHD Selectable Video Filter Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

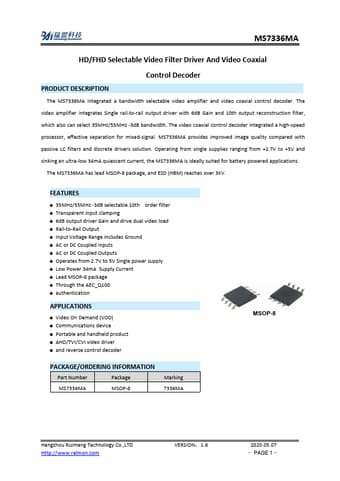

MS7336MA HD/FHD Selectable Video Filter Driver And Video Coaxial Control Decoder PRODUCT DESCRIPTION The MS7336MA integrated a bandwidth selectable video amplifier and video coaxial control decoder. The video amplifier integrates Single rail-to-rail output driver with 6dB Gain and 10th output reconstruction filter, which also can select 35MHz/55MHz -3dB bandwidth. The video coaxial control decoder integrated a high-speed processor, effective separation for mixed-signal. MS7336MA provides improved image quality compared with passive LC filters and discrete drivers solution. Operating from single supplies ranging from +2.7V to +5V and sinking an ultra-low 34mA quiescent current, the MS7336MA is ideally suited for battery powered applications.
