Datasheet Details
Part number:
MS75085, MS75083
Manufacturer:
File Size:
123.63 KB
Description:
Inductors.
Note:
This datasheet PDF includes multiple part numbers: MS75085, MS75083.
Please refer to the document for exact specifications by model.
Datasheet Details
Part number:
MS75085, MS75083
Manufacturer:
File Size:
123.63 KB
Description:
Inductors.
Note:
This datasheet PDF includes multiple part numbers: MS75085, MS75083.
Please refer to the document for exact specifications by model.

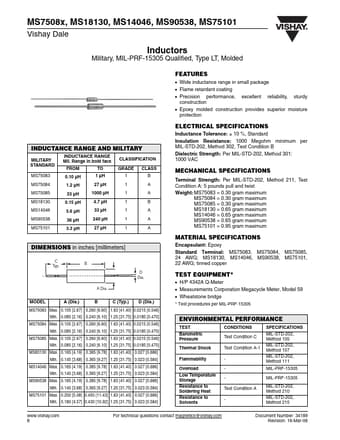

MS75085, MS75083, Inductors
- MILITARY PART NUMBER MS75084 MILITARY STANDARD - 12 INDUCTANCE VALUE OR LT TYPE 10 GRADE AND CLASS K FAMILY 072 ID NUMBER GLOBAL PART NUMBER INFORMATION MS 7 5 0 4 8 MODEL - 12 INDUCTANCE VALU
MS7508x, MS18130, MS14046, MS90538, MS75101 Vishay Dale Inductors Military, MIL-PRF-15305 Qualified, Type LT, Molded INDUCTANCE RANGE AND MILITARY MILITARY STANDARD INDUCTANCE RANGE Mil.
Range in bold face FROM TO CLASSIFICATION GRADE CLASS MS75083 0.10 µH 1 µH 1 B MS75084 1.2 µH 27 µH 1 A MS75085 33 µH 1000 µH 1 A MS18130 0.15 µH 4.7 µH 1 B MS14046 5.6 µH 33 µH 1 A MS90538 36 µH 240 µH 1 A MS75101 3.3 µH 27 µH 1 A DIMENSIONS in inches [millimeters] C T
MS75085 Features
* Wide inductance range in small package
* Flame retardant coating
* Precision performance, excellent reliability, sturdy construction
* Epoxy molded construction provides superior moisture protection ELECTRICAL SPECIFICATIONS Inductance Tolerance: ± 10 %, Standard In
