MS7682M - Video Amplifier And Video Coaxial Control Decoder

Download the MS7682M datasheet PDF. This datasheet also covers the MS7682 variant, as both devices belong to the same video amplifier and video coaxial control decoder family and are provided as variant models within a single manufacturer datasheet.

Description

The MS7682/MS7682M integrated Single video amplifier and video coaxial control decoder.

The video amplifiers integrated Single 6dB Gain rail-to-rail output driver and 3rd output reconstruction filter, it has 35MHz -3dB bandwidth and 160V/µs slew rate.

Features

  • a low-power shutdown pin that is activated by driving SP low. The MS7682 has lead SOP-8 package, the MS7682M has lead MSOP-8 package, and ESD (HBM) reaches 2KV.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS7682-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS7682M
Manufacturer Ruimeng
File Size 406.87 KB
Description Video Amplifier And Video Coaxial Control Decoder
Datasheet download datasheet MS7682M Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS761 PRESSURE SENSOR DIE Intersema
MS7 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RUBYCON CORPORATION
MS7200 HD to Digital RGB/YUV MACRO SILICON
MS7212 PRESSURE SENSOR DIE Measurement
MS7212-A2 Hermetic Pressure Sensor Die Measurement

Other Datasheets by Ruimeng

Part Number Description
MS7682 Video Amplifier And Video Coaxial Control Decoder
MS761 Push-Pull Output Comparator
MS762 Push-Pull Output Comparator
MS762M Push-Pull Output Comparator
MS7632M Single Video Amplifier And Video Coaxial Control Decoder

Full PDF Text Transcription

Click to expand full text

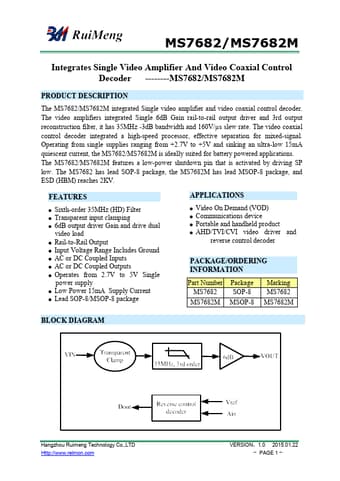

MS7682/MS7682M Integrates Single Video Amplifier And Video Coaxial Control Decoder --------MS7682/MS7682M PRODUCT DESCRIPTION The MS7682/MS7682M integrated Single video amplifier and video coaxial control decoder. The video amplifiers integrated Single 6dB Gain rail-to-rail output driver and 3rd output reconstruction filter, it has 35MHz -3dB bandwidth and 160V/µs slew rate. The video coaxial control decoder integrated a high-speed processor, effective separation for mixed-signal. Operating from single supplies ranging from +2.7V to +5V and sinking an ultra-low 15mA quiescent current, the MS7682/MS7682M is ideally suited for battery powered applications. The MS7682/MS7682M features a low-power shutdown pin that is activated by driving SP low.
