LTR-X150P - Optical Sensor

LITEON

📥 Download Datasheet

LTR-X150P Datasheet Preview — Preview of LTR-X150P PDF

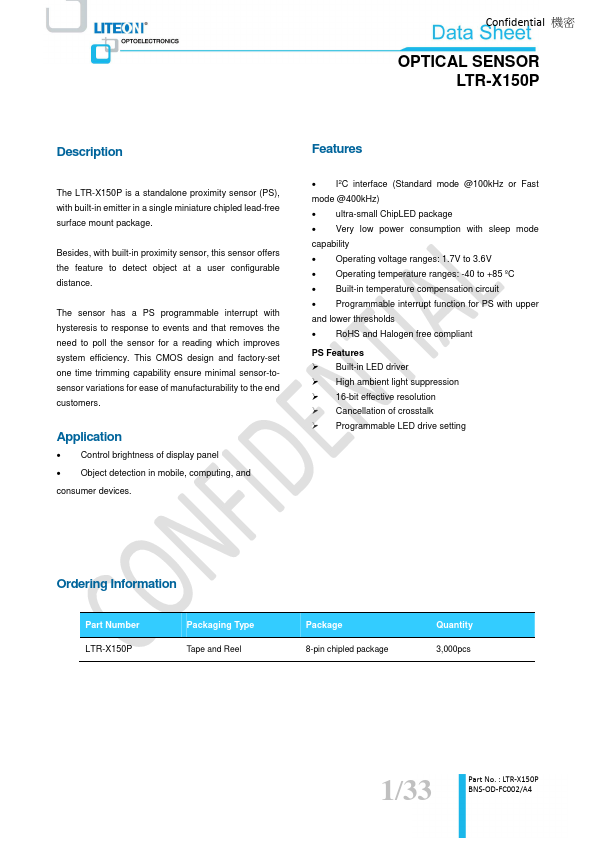

datasheet Preview Page 2

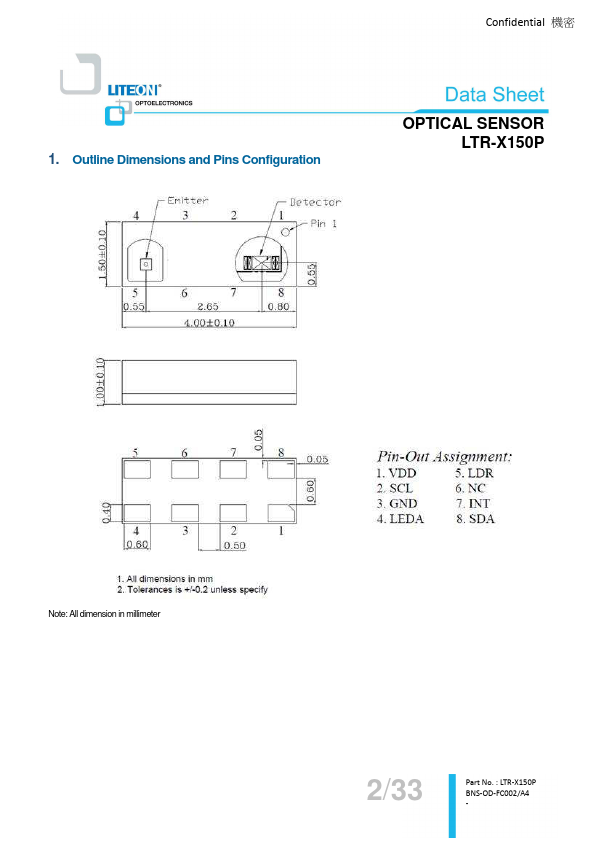

datasheet Preview Page 3

Datasheet Details

Part number	LTR-X150P
Manufacturer	LITEON
File Size	894.25 KB
Description	Optical Sensor
Datasheet	LTR-X150P-LITEON.pdf

LTR-X150P Product details

Description

The LTR-X150P is a standalone proximity sensor (PS), with built-in emitter in a single miniature chipled lead-free surface mount package.

Features

I2C interface (Standard mode @100kHz or Fast mode @400kHz).
ultra-small ChipLED package.
Very low power consumption with sleep mode capability.
Operating voltage ranges: 1.7V to 3.6V.
Operating temperature ranges: -40 to +85 ºC.
Built-in temperature compensation circuit.
Programmable interrupt function for PS with upper and lower thresholds.
RoHS and Halogen free compliant PS Features.
Built-in LED driver.
High am.
