LTR-X1082 - Optical Sensor

LITE-ON

📥 Download Datasheet

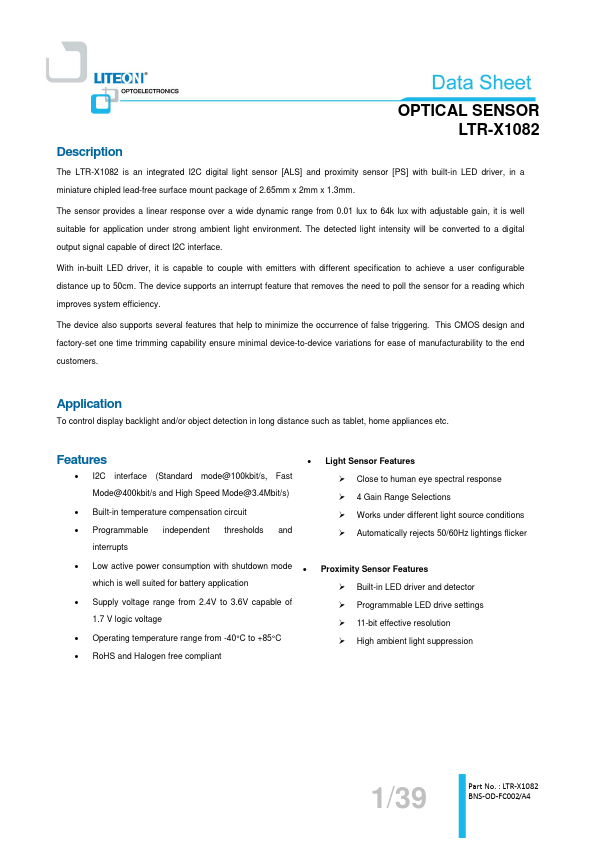

LTR-X1082 Datasheet Preview — Preview of LTR-X1082 PDF

Datasheet Details

Part number	LTR-X1082
Manufacturer	LITEON
File Size	692.52 KB
Description	Optical Sensor
Datasheet	LTR-X1082-LITEON.pdf

LTR-X1082 Product details

Description

OPTICAL SENSOR LTR-X1082 The LTR-X1082 is an integrated I2C digital light sensor [ALS] and proximity sensor [PS] with built-in LED driver, in a miniature chipled lead-free surface mount package of 2.65mm x 2mm x 1.3mm.The sensor provides a linear response over a wide dynamic range from 0.01 lux to 64k lux with adjustable gain, it is well suitable for application under strong ambient light environment.The detected light intensity will be converted to a digital output signal capable of direct

Features

that help to minimize the occurrence of false triggering. This CMOS design and factory-set one time trimming capability ensure minimal device-to-device variations for ease of manufacturability to the end customers.
