LTR-309, LTR-309-LITE IR Emitter/Detector

LITE-ON

Description

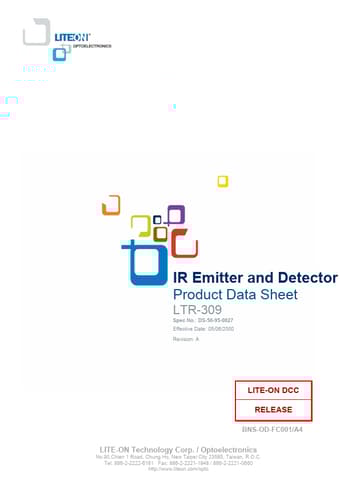

IR Emitter and Detector Product Data Sheet LTR-309 Spec No.: DS-50-95-0027 Effective Date: 05/06/2000 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 .

📥 Download Datasheet

LTR-309 Datasheet Preview — This datasheet PDF includes multiple part numbers: LTR-309, LTR-309-LITE. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LTR-309, LTR-309-LITE
Manufacturer: LITE-ON
File Size: 276.25 KB
Datasheet: LTR-309-LITE-ON.pdf
Description: IR Emitter/Detector
Note: This datasheet PDF includes multiple part numbers: LTR-309, LTR-309-LITE.
Please refer to the document for exact specifications by model.

Features

* WIDE RANGE OF COLLECTOR CURRENT
* THE LENS IS FOR HIGH SENSITIVITY
* LOW COST PLASTIC PACKAGE
* CLEAR TRANSPARENT COLOR PACKAGE PACKAGE DIMENSIONS NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Lead spacing is measur
