LTR-4206E Infrared

LITEON

LTR-4206E Description

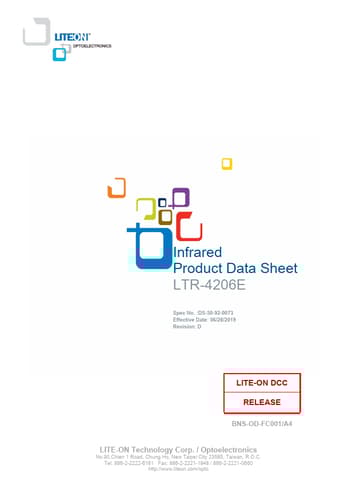

Infrared Product Data Sheet LTR-4206E Spec No.:DS-50-92-0073 Effective Date: 06/28/2019 Revision: D LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Techn.

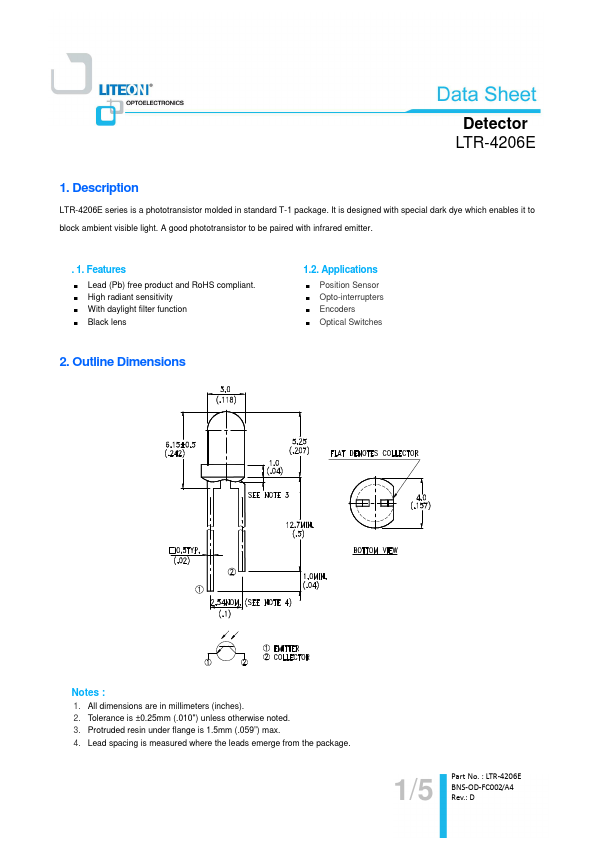

LTR-4206E series is a phototransistor molded in standard T-1 package.

LTR-4206E Features

* Lead (Pb) free product and RoHS compliant.
* High radiant sensitivity
* With daylight filter function

LTR-4206E Applications

* Position Sensor
* Opto-interrupters
* Encoders
* Optical Switches Notes : 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm (.010") unless otherwise noted. 3. Protruded resin under flange is 1.5mm (.059”) max. 4. Lead spacing is measured where the leads emerge

📥 Download Datasheet

LTR-4206E Datasheet Preview — Preview of LTR-4206E PDF

Datasheet Details

Part number: LTR-4206E
Manufacturer: LITEON
File Size: 274.48 KB
Datasheet: LTR-4206E-LITEON.pdf
Description: Infrared
