LTR-3208E IR Emitter and Detector

LITEON

LTR-3208E Description

IR Emitter and Detector Product Data Sheet LTR-3208E Spec No.: DS-50-92-0068 Effective Date: 05/03/2000 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A.

LTR-3208E Features

* WIDE RANGE OF COLLECTOR CURRENT
* THE LENS IS FOR HIGH SENSITIVITY
* LOW COST PLASTIC PACKAGE

LTR-3208E Applications

* PACKAGE DIMENSIONS NOTES: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25mm(.010") unless otherwise noted. 3. Protruded resin under flange is 1.5mm(.059") max. 4. Lead spacing is measured where the leads emerge from the package. 5. Specifications are subject to change without n

📥 Download Datasheet

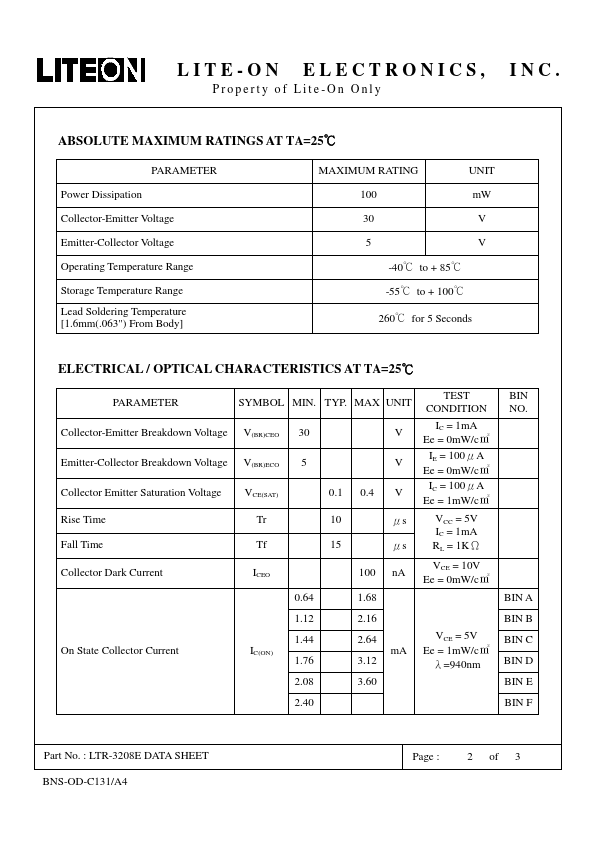

LTR-3208E Datasheet Preview — Preview of LTR-3208E PDF

Datasheet Details

Part number: LTR-3208E
Manufacturer: LITEON
File Size: 282.06 KB
Datasheet: LTR-3208E-LITEON.pdf
Description: IR Emitter and Detector
