LTR-X1303 - Optical Sensor

LITEON

📥 Download Datasheet

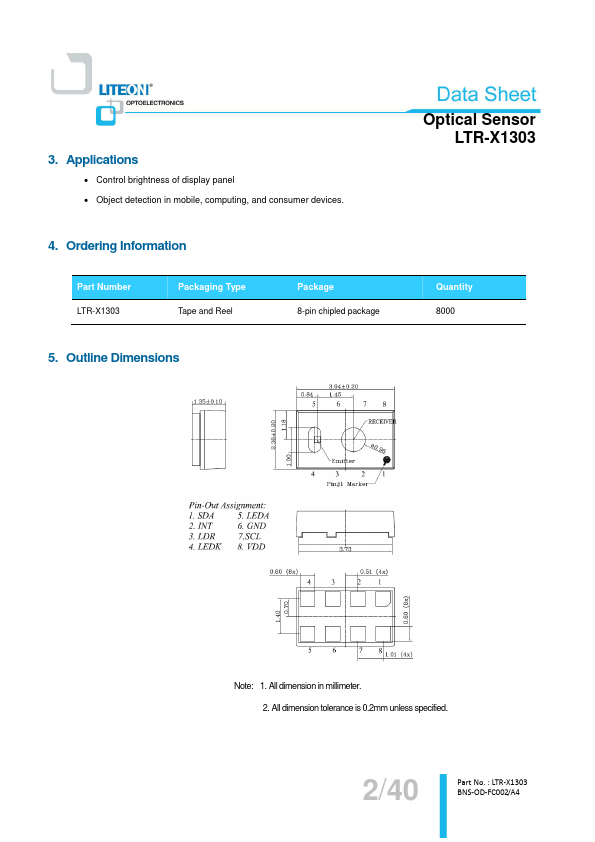

LTR-X1303 Datasheet Preview — Preview of LTR-X1303 PDF

Datasheet Details

Part number	LTR-X1303
Manufacturer	LITEON
File Size	903.91 KB
Description	Optical Sensor
Datasheet	LTR-X1303-LITEON.pdf

LTR-X1303 Product details

Description

Optical Sensor LTR-X1303 The LTR-X1303 is an integrated low voltage I2C ambient light sensor (ALS), and proximity sensor (PS), with built-in emitter in a single miniature chipled lead-free surface mount package.The ALS provides a linear response over a wide dynamic range, which is well suited to applications under very low or bright ambient brightness.Besides, with built-in proximity sensor, this sensor offers the feature to detect object at a user configurable distance.The sensor has a pro

Features

I2C interface (Standard mode @100kHz or Fast mode @400kHz).
Ambient Light and Proximity Sensing in one ultra-small ChipLED package.
Very low power consumption with sleep mode capability.
Operating voltage ranges: 1.7V to 3.6V.
Operating temperature ranges: -40 to +85 ºC.
Built-in temperature compensation circuit.
Programmable interrupt function for ALS and PS with upper and lower thresholds.
RoHS and Halogen free compliant.
