LTR-X1503 - Optical Sensor

Name: LTR-X1503
SKU: LTR-X1503-1586886

LITEON

📥 Download Datasheet

LTR-X1503 Datasheet Preview — Preview of LTR-X1503 PDF

Datasheet Details

Part number	LTR-X1503
Manufacturer	LITEON
File Size	1.01 MB
Description	Optical Sensor
Datasheet	LTR-X1503-LITEON.pdf

LTR-X1503 Product details

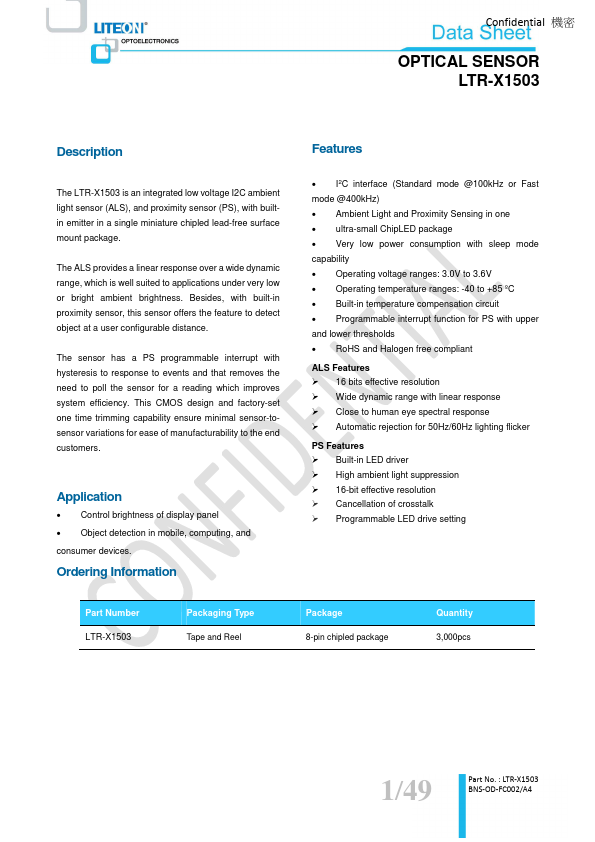

Description

The LTR-X1503 is an integrated low voltage I2C ambient light sensor (ALS), and proximity sensor (PS), with builtin emitter in a single miniature chipled lead-free surface mount package.

Features

I2C interface (Standard mode @100kHz or Fast mode @400kHz).
Ambient Light and Proximity Sensing in one.
ultra-small ChipLED package.
Very low power consumption with sleep mode capability.
Operating voltage ranges: 3.0V to 3.6V.
Operating temperature ranges: -40 to +85 ºC.
Built-in temperature compensation circuit.
Programmable interrupt function for PS with upper and lower thresholds.
RoHS and Halogen free complian.
