LTR-X140A - Optical Sensor

Name: LTR-X140A
SKU: LTR-X140A-1586530

LITEON

📥 Download Datasheet

LTR-X140A Datasheet Preview — Preview of LTR-X140A PDF

Datasheet Details

Part number	LTR-X140A
Manufacturer	LITEON
File Size	632.99 KB
Description	Optical Sensor
Datasheet	LTR-X140A-LITEON.pdf

LTR-X140A Product details

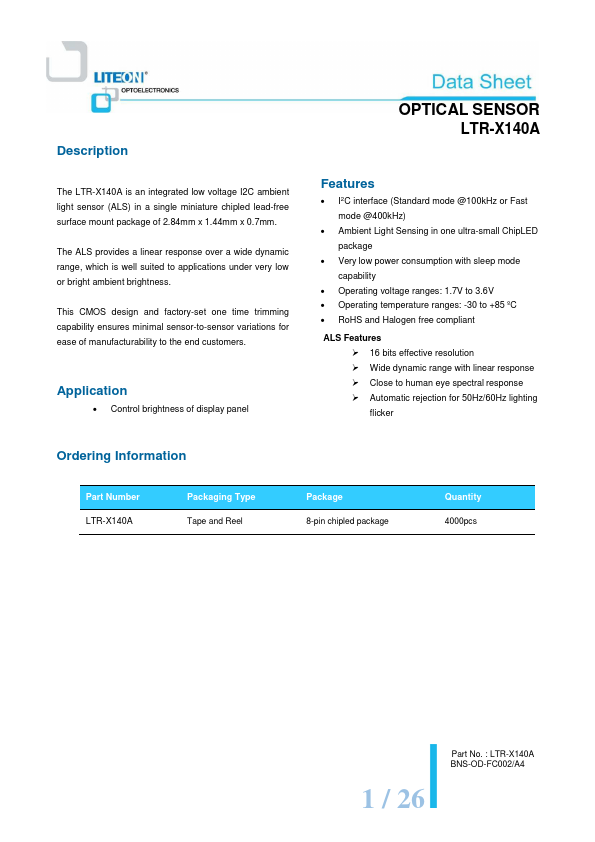

Description

The LTR-X140A is an integrated low voltage I2C ambient light sensor (ALS) in a single miniature chipled lead-free surface mount package of 2.84mm x 1.44mm x 0.7mm. Control brig

Features

I2C interface (Standard mode @100kHz or Fast mode @400kHz).
Ambient Light Sensing in one ultra-small ChipLED package.
Very low power consumption with sleep mode capability.
Operating voltage ranges: 1.7V to 3.6V.
Operating temperature ranges: -30 to +85 ºC.
RoHS and Halogen free compliant ALS Features.
16 bits effective resolution.
Wide dynamic range with linear response.
Close to human eye spectral response.
Automatic re.
