LTR-X130A-039 Product details

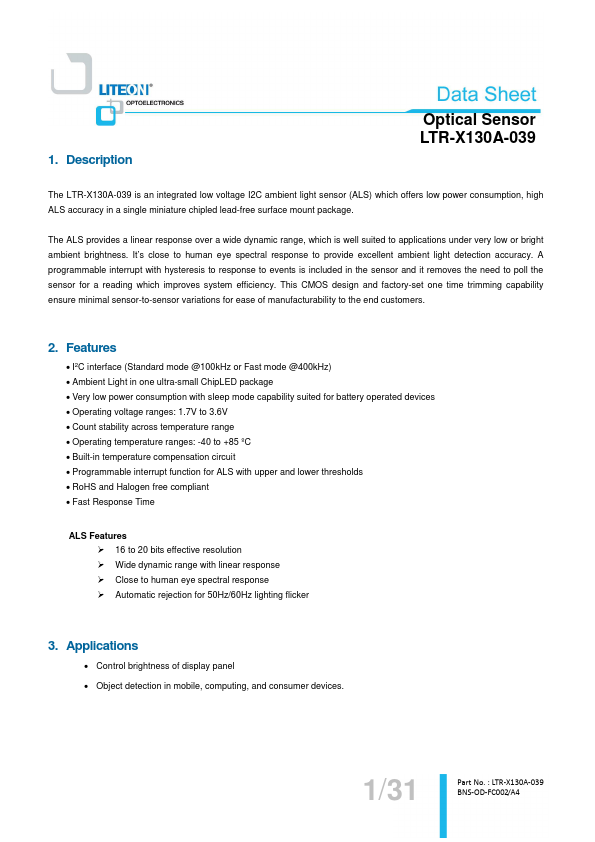

Description

Optical Sensor LTR-X130A-039 The LTR-X130A-039 is an integrated low voltage I2C ambient light sensor (ALS) which offers low power consumption, high ALS accuracy in a single miniature chipled lead-free surface mount package.The ALS provides a linear response over a wide dynamic range, which is well suited to applications under very low or bright ambient brightness.It’s close to human eye spectral response to provide excellent ambient light detection accuracy.A programmable interrupt with hys

Features

I2C interface (Standard mode @100kHz or Fast mode @400kHz).
Ambient Light in one ultra-small ChipLED package.
Very low power consumption with sleep mode capability suited for battery operated devices.
Operating voltage ranges: 1.7V to 3.6V.
Count stability across temperature range.
Operating temperature ranges: -40 to +85 ºC.
Built-in temperature compensation circuit.
Programmable interrupt function for ALS with upper and l.
