LMNBSS139W - 60V N-Channel MOSFET

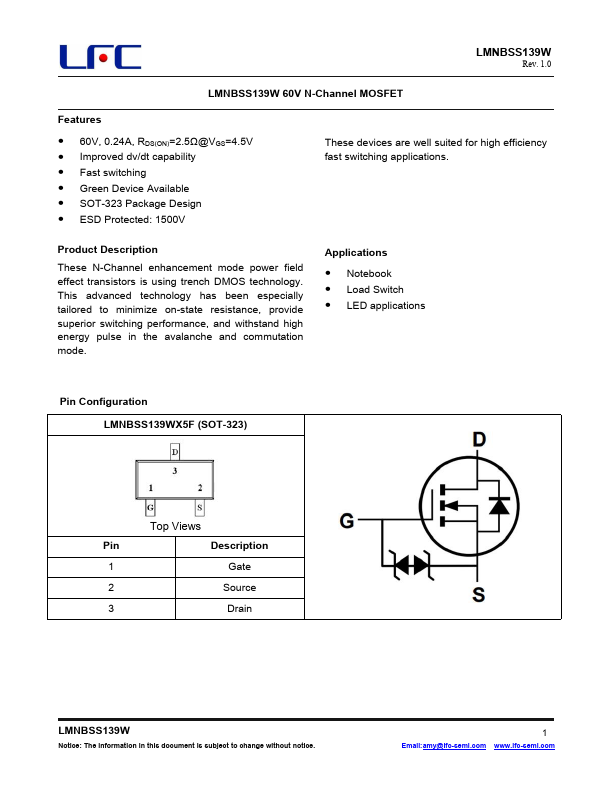

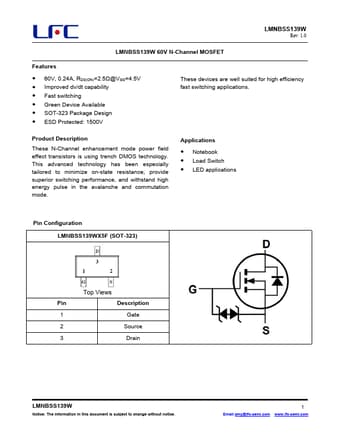

The LMNBSS139W by LFC semi is a 60V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMNBSS139W
Manufacturer	LFC semi
File Size	536.16 KB
Description	60V N-Channel MOSFET
Datasheet	LMNBSS139W-LFCsemi.pdf

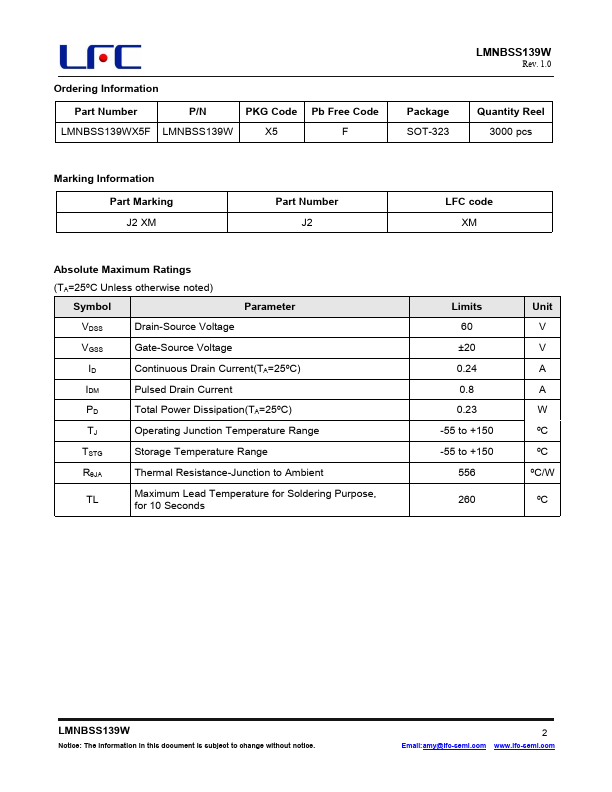

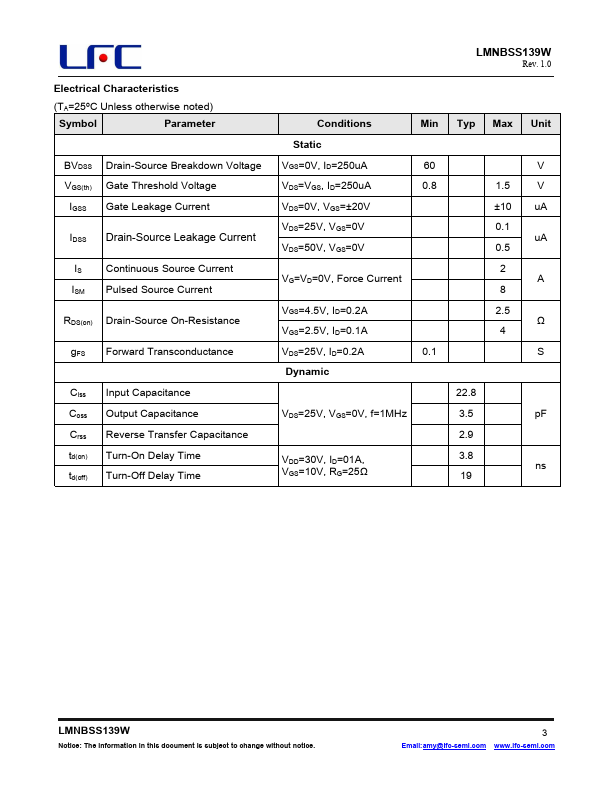

Additional preview pages of the LMNBSS139W datasheet.

LMNBSS139W Product details

Description

These N-Channel enhancement mode power field effect transistors is using trench DMOS technology. Notebook Load Switch LED applications Pin Configuration LMNBSS139WX5F (SOT-323) Top Views Pin Description 1 Gate 2 Source 3 Drain LMNBSS139W Notice: The informati

Features

60V, 0.24A, RDS(ON)=2.5Ω@VGS=4.5V.
Improved dv/dt capability.
Fast switching.
Green Device Available.
SOT-323 Package Design.
ESD Protected: 1500V These devices are well suited for high efficiency fast switching.
