LMNBSS139K - 60V N-Channel MOSFET

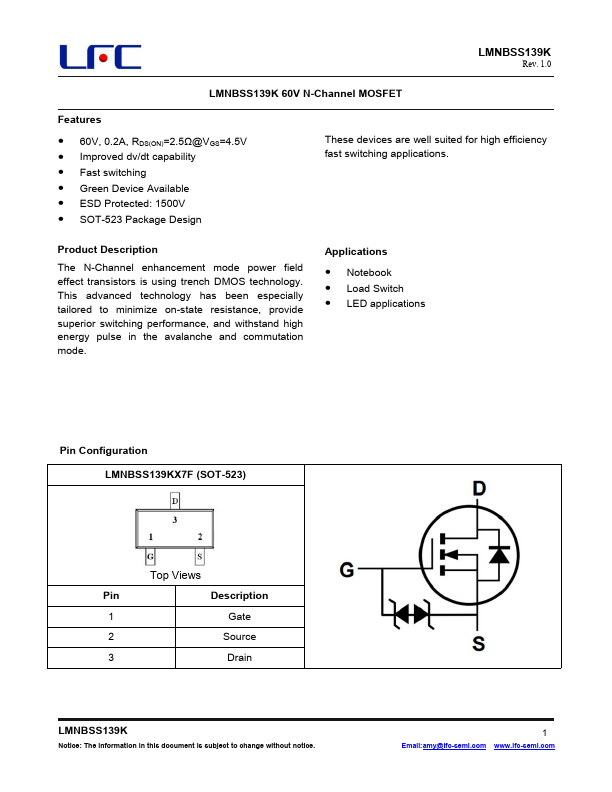

The LMNBSS139K by LFC semi is a 60V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMNBSS139K
Manufacturer	LFC semi
File Size	540.08 KB
Description	60V N-Channel MOSFET
Datasheet	LMNBSS139K-LFCsemi.pdf

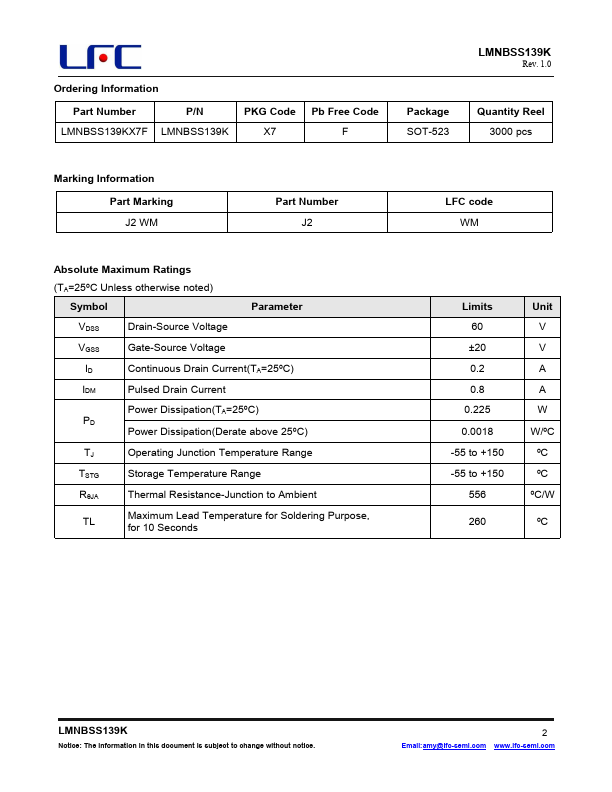

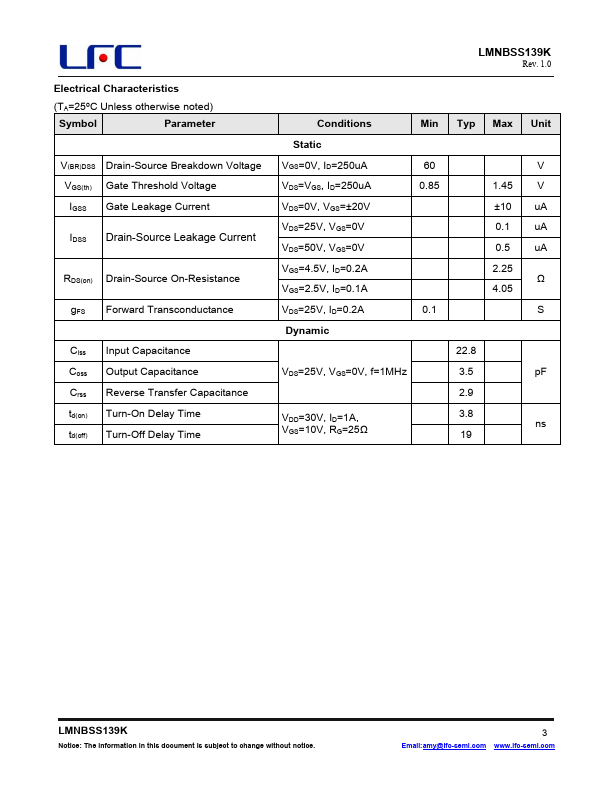

Additional preview pages of the LMNBSS139K datasheet.

LMNBSS139K Product details

Description

The N-Channel enhancement mode power field effect transistors is using trench DMOS technology. Notebook Load Switch LED applications Pin Configuration LMNBSS139KX7F (SOT-523) Top Views Pin Description 1 Gate 2 Source 3 Drain LMNBSS139K Notice: The information

Features

60V, 0.2A, RDS(ON)=2.5Ω@VGS=4.5V.
Improved dv/dt capability.
Fast switching.
Green Device Available.
ESD Protected: 1500V.
SOT-523 Package Design These devices are well suited for high efficiency fast switching.
