LMNBSS139JZF - 60V N-Channel Enhancement Mode MOSFET

The LMNBSS139JZF by LFC semi is a 60V N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

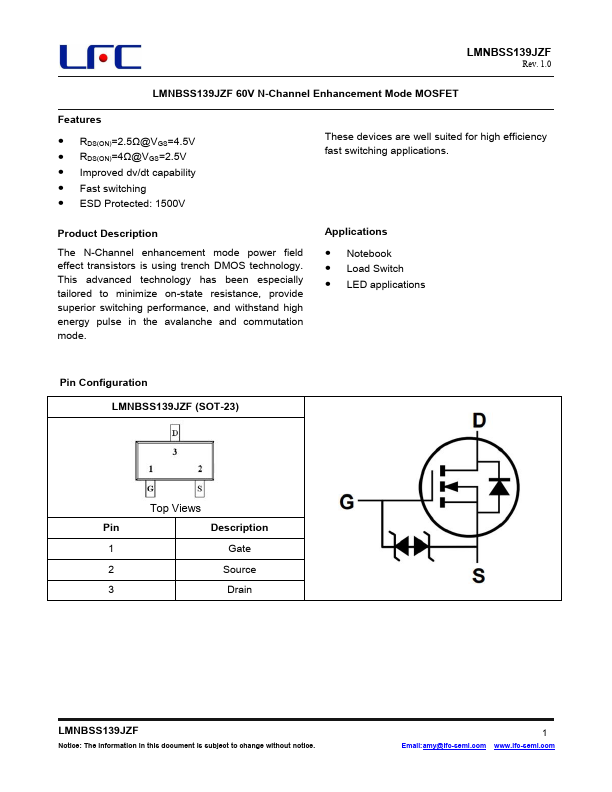

LMNBSS139JZF 60V N-Channel Enhancement Mode MOSFET by LFC semi - Datasheet Preview — Official preview page of the **LMNBSS139JZF** 60V N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number	LMNBSS139JZF
Manufacturer	LFC semi
File Size	533.69 KB
Description	60V N-Channel Enhancement Mode MOSFET
Datasheet	LMNBSS139JZF-LFCsemi.pdf

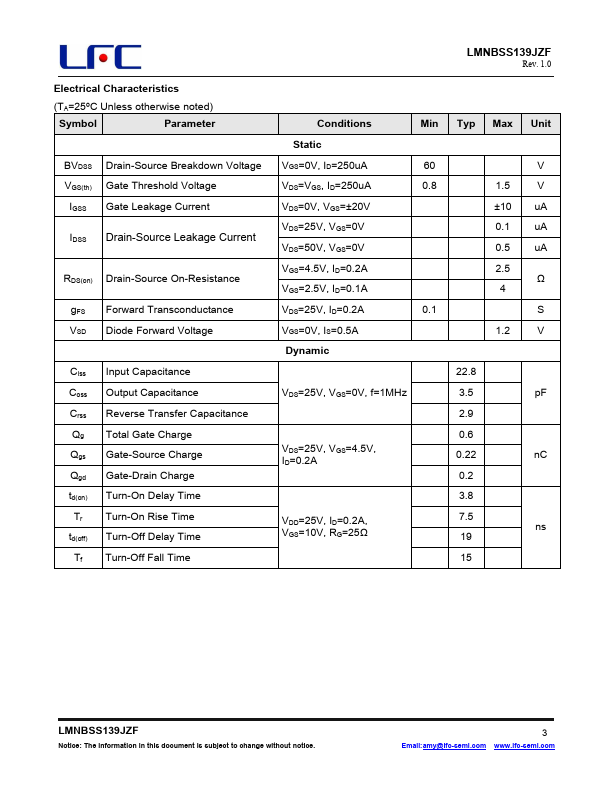

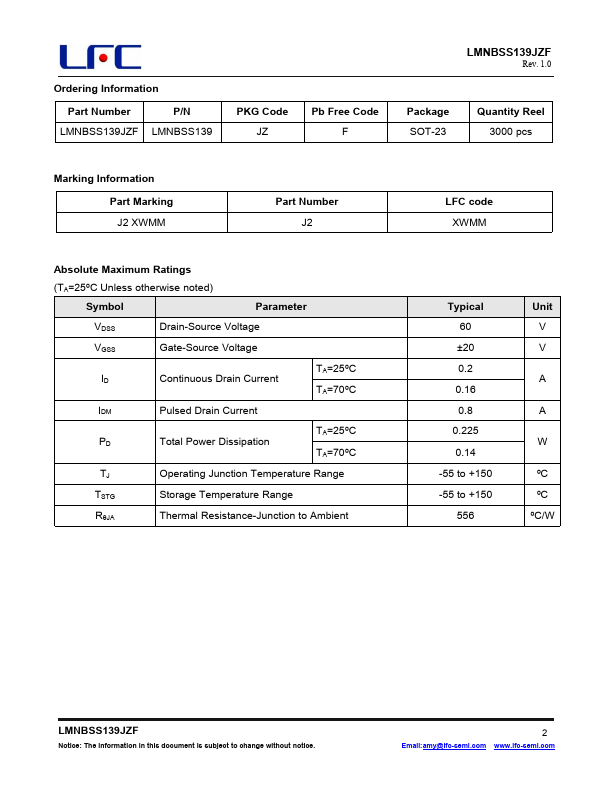

Additional preview pages of the LMNBSS139JZF datasheet.

LMNBSS139JZF Product details

Description

The N-Channel enhancement mode power field effect transistors is using trench DMOS technology. Notebook Load Switch LED applications Pin Configuration LMNBSS139JZF (SOT-23) Top Views Pin Description 1 Gate 2 Source 3 Drain LMNBSS139JZF Notice: The information

Features

RDS(ON)=2.5Ω@VGS=4.5V.
RDS(ON)=4Ω@VGS=2.5V.
Improved dv/dt capability.
Fast switching.
ESD Protected: 1500V These devices are well suited for high efficiency fast switching.
