LMNBSS139TFF - 60V N-Channel MOSFET

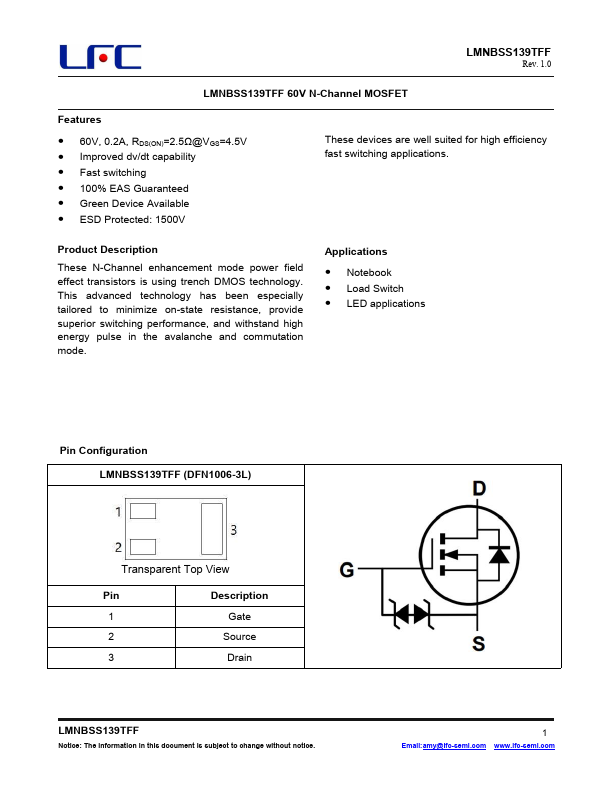

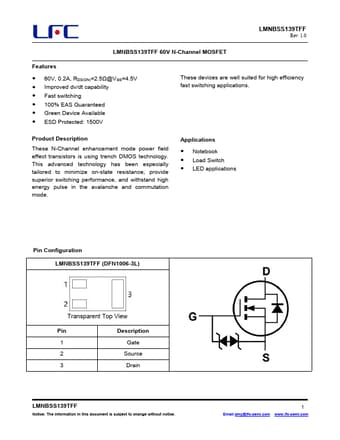

The LMNBSS139TFF by LFC semi is a 60V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMNBSS139TFF
Manufacturer	LFC semi
File Size	453.83 KB
Description	60V N-Channel MOSFET
Datasheet	LMNBSS139TFF-LFCsemi.pdf

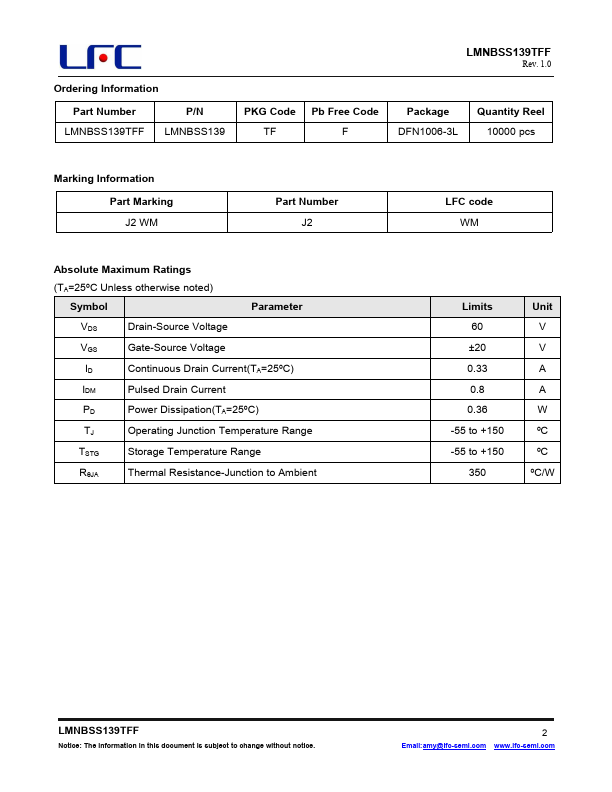

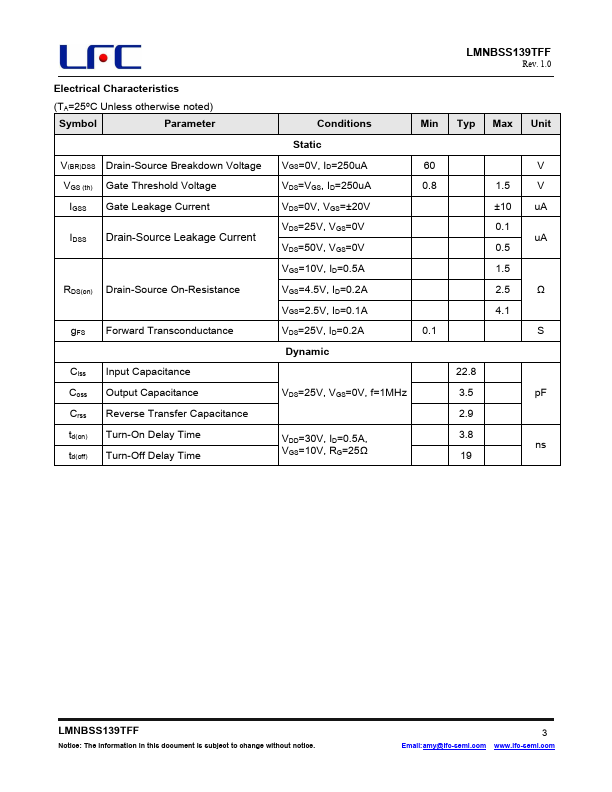

Additional preview pages of the LMNBSS139TFF datasheet.

LMNBSS139TFF Product details

Description

These N-Channel enhancement mode power field effect transistors is using trench DMOS technology. Notebook Load Switch LED applications Pin Configuration LMNBSS139TFF (DFN1006-3L) Transparent Top View Pin Description 1 Gate 2 Source 3 Drain LMNBSS139TFF Notice

Features

60V, 0.2A, RDS(ON)=2.5Ω@VGS=4.5V.
Improved dv/dt capability.
Fast switching.
100% EAS Guaranteed.
Green Device Available.
ESD Protected: 1500V These devices are well suited for high efficiency fast switching.
