LMNBSS123 - 100V N-Channel Enhancement Mode MOSFET

The LMNBSS123 by LFC semi is a 100V N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

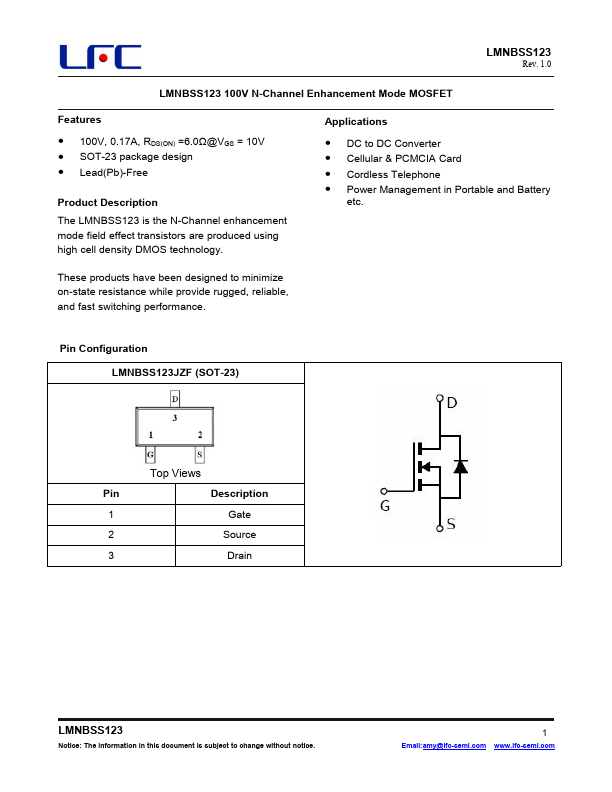

Official preview page of the LMNBSS123 100V N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMNBSS123
Manufacturer LFC semi
File Size 338.18 KB
Description 100V N-Channel Enhancement Mode MOSFET
Datasheet download datasheet LMNBSS123-LFCsemi.pdf

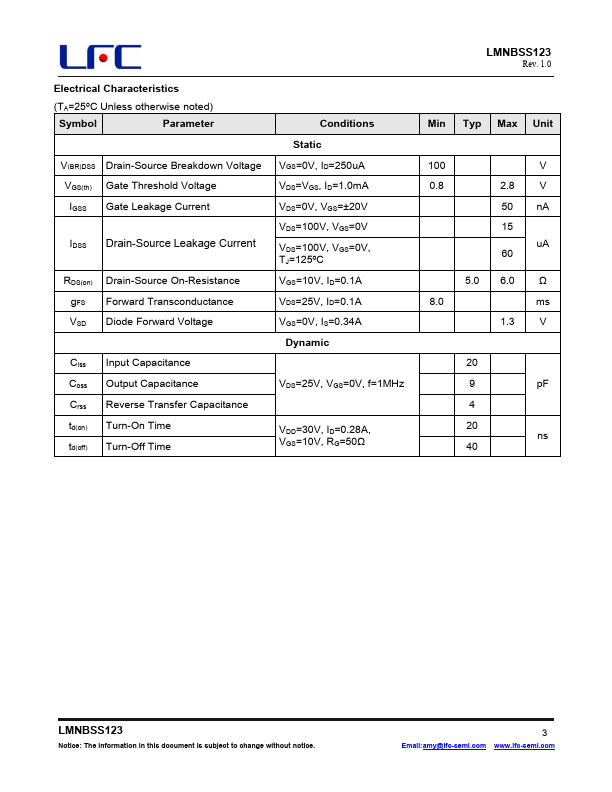

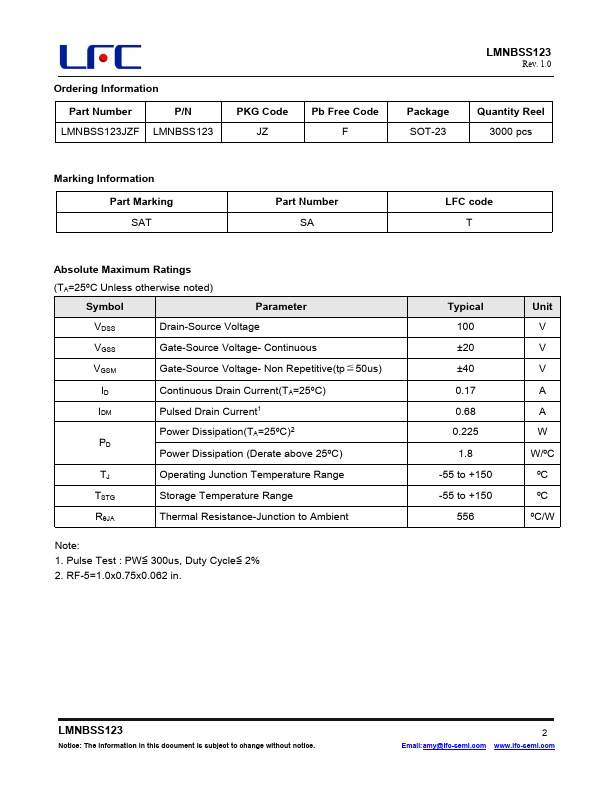

Additional preview pages of the LMNBSS123 datasheet.

LMNBSS123 Product details

Description

The LMNBSS123 is the N-Channel enhancement mode field effect transistors are produced using high cell density DMOS technology. DC to DC Converter Cellular & PCMCIA Card Cordless Telephone Power Management in Portable and Battery etc.These products have been designed to minimize on-state resistance while provide rugged, reliable, and fast switching performance.Pin Configuration LMNBSS123JZF (SOT-23) Top Views Pin Description 1 Gate 2 Source 3 Dra

Features
