IXGT32N60C - IGBT

Download the IXGT32N60C datasheet PDF (IXGH32N60C included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for igbt.

Features

International standard packages JEDEC TO-247 and surface mountable TO-268.
High current handling capability.
Latest generation.

IXYS (now Littelfuse)

📥 Download Datasheet

IXGT32N60C igbt by IXYS Corporation - Datasheet Preview — Note: The manufacturer provides a single datasheet file (IXGH32N60C_IXYSCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	IXGT32N60C
Manufacturer	IXYS (now Littelfuse)
File Size	117.18 KB
Description	IGBT
Datasheet	IXGT32N60C Datasheet

📁 Similar Datasheet

IXGT32N120A3 - Ultra-Low Vsat PT IGBT (IXYS)
IXGT32N170 - High Voltage IGBT (IXYS)
IXGT32N170A - High Voltage IGBT (IXYS)
IXGT32N90B2 - High Speed IGBTs (IXYS)
IXGT32N90B2D1 - IGBT (IXYS)
IXGT30N60B2D1 - IGBT (IXYS)
IXGT30N60C2 - HiPerFAST IGBT (IXYS)
IXGT30N60C2D1 - HiPerFAST IGBT (IXYS)
IXGT35N120B - IGBT (IXYS)
IXGT10N170 - High Voltage IGBT (IXYS)

Other Datasheets by IXYS Corporation

IXGT32N60BD1 - HiPerFAST IGBT
IXGT30N120B3D1 - GenX3 1200V IGBTs
IXGT30N60B - HiPerFASTTM IGBT
IXGT30N60B2 - HiPerFAST IGBT
IXGT30N60BD1 - HiPerFASTTM IGBT with Diode
IXGT30N60BU1 - HiPerFAST IGBT
IXGT31N60 - Ultra-Low VCE(sat) IGBT
IXGT35N120C - IGBT Lightspeed Series

Full PDF Text Transcription

Click to expand full text

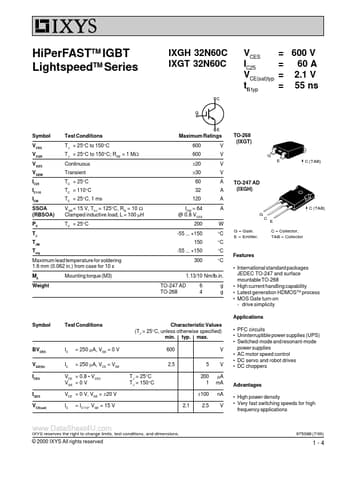

www.DataSheet4U.com HiPerFASTTM IGBT LightspeedTM Series IXGH 32N60C IXGT 32N60C VCES IC25 VCE(sat)typ tfi typ = 600 V = 60 A = 2.1 V = 55 ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 10 W Clamped inductive load, L = 100 mH TC = 25°C Maximum Ratings 600 600 ±20 ±30 60 32 120 ICM = 64 @ 0.8 VCES 200 -55 ... +150 150 -55 ...
