CS1N80A1H - Silicon N-Channel Power MOSFET

Huajing Microelectronics

📥 Download Datasheet

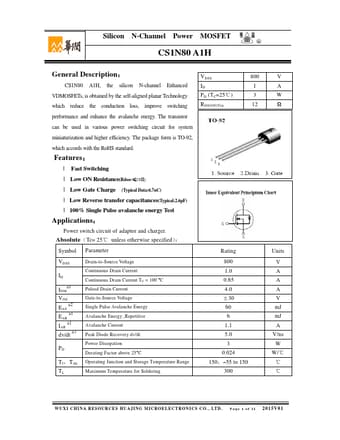

CS1N80A1H Datasheet Preview — Preview of CS1N80A1H PDF

Datasheet Details

Part number	CS1N80A1H
Manufacturer	Huajing Microelectronics
File Size	536.15 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS1N80A1H-HuajingMicroelectronics.pdf

CS1N80A1H Product details

Description

CS1N80 A1H, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching VDSS ID PD (TC=25℃) RDS(ON)Typ 800 1 3 12 performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-92, which accords with the RoHS standard.

Features

l Fast Switching l Low ON Resistance(Rdson≤15Ω) l Low Gate Charge (Typical Data:6.7nC) l Low Reverse transfer capacitances(Typical:2.6pF) l 100% Single Pulse avalanche energy Test.
