CS1N50A3R - Silicon N-Channel Power MOSFET

CR Micro

📥 Download Datasheet

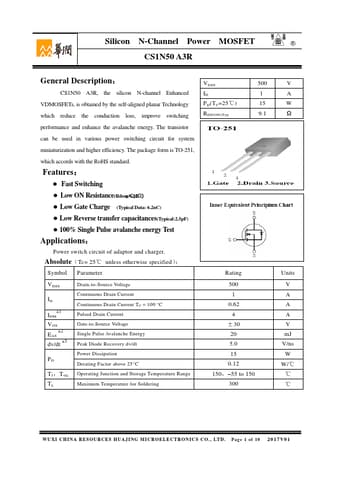

CS1N50A3R Datasheet Preview — Preview of CS1N50A3R PDF

Datasheet Details

Part number	CS1N50A3R
Manufacturer	CR Micro
File Size	620.66 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS1N50A3R-CRMicro.pdf

CS1N50A3R Product details

Description

CS1N50 A3R, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-251, which accords with the RoHS standard.

Features

Fast Switching.
Low ON Resistance(Rdson≤10Ω).
Low Gate Charge (Typical Data: 6.2nC).
Low Reverse transfer capacitances(Typical:2.5pF).
100% Single Pulse avalanche energy Test.
