The APC77135E by Bel Fuse is a Quad AFE. Below is the official datasheet preview.

📥 Download Datasheet

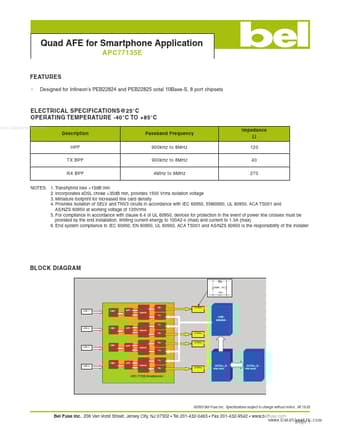

APC77135E Quad AFE by Bel Fuse - Datasheet Preview — Official preview page of the **APC77135E** Quad AFE datasheet (Bel Fuse).

Datasheet Details

Part number	APC77135E
Manufacturer	Bel Fuse
File Size	192.26 KB
Description	Quad AFE
Datasheet	APC77135E_BelFuse.pdf
Additional preview pages of the APC77135E datasheet.

APC77135E Product details

Description

HPF TX BPF RX BPF Passband Frequency 900kHz to 8MHz 900kHz to 8MHz 4MHz to 8MHz Impedance Ω 120 40 270 NOTES: 1. Transhybrid loss >15dB min 2. Incorporates xDSL choke >35dB min, provides 1500 Vrms isolation voltage 3. Miniature footprint for increased line card density 4. Provides isolation of SELV and TNV3 cicuits in accordance with IEC 60950, EN60950, UL 60950, ACA TS001 and AS/NZS 60950 at working voltage of 120Vrms 5. For compliance in accordance with clause 6.4 of UL 60950, devices for pr

Features

Designed for Infineon’s PEB22824 and PEB22825 octal 10Base-S, 8 port chipsets.
