APC77134 - VDSL Splitter Protection Module

Bel Fuse

The APC77134 by Bel Fuse is a VDSL Splitter Protection Module. Below is the official datasheet preview.

📥 Download Datasheet

APC77134 VDSL Splitter Protection Module by Bel Fuse - Datasheet Preview — Official preview page of the **APC77134** VDSL Splitter Protection Module datasheet (Bel Fuse).

Datasheet Details

Part number	APC77134
Manufacturer	Bel Fuse
File Size	207.17 KB
Description	VDSL Splitter Protection Module
Datasheet	APC77134_BelFuse.pdf

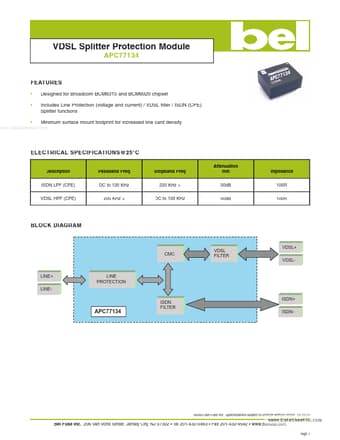

Additional preview pages of the APC77134 datasheet.

APC77134 Product details

Description

ISDN LPF (CPE) VDSL HPF (CPE) Passband Freq DC to 120 KHz 200 KHz > Stopband Freq 220 KHz > DC to 100 KHz Attenuation min 50dB 50dB Impedance 100R 100R BLOCK DIAGRAM CMC VDSL FILTER VDSL+ VDSL- LINE+ LINE- LINE PROTECTION APC77134 ISDN FILTER ISDN+ ISDN- ©2003 Bel Fuse Inc.Specifications subject to change without notice.05.20.03 Bel Fuse Inc.206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com Page 1 VDSL Split

Features

Designed for Broadcom BCM6315 and BCM6020 chipset Includes Line Protection (voltage and current) / VDSL filter / ISDN (CPE) Splitter functions Minimum surface mount footprint for increased line card density www. DataSheet4U. com.
