APC77130 - VDSL Hybrid Module

Bel Fuse

The APC77130 by Bel Fuse is a VDSL Hybrid Module. Below is the official datasheet preview.

📥 Download Datasheet

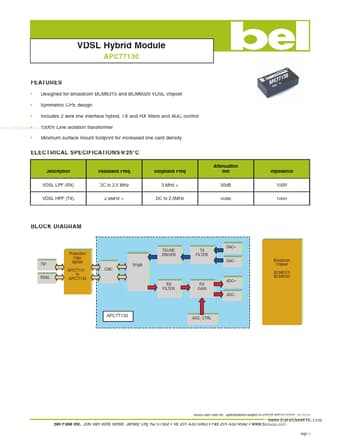

APC77130 VDSL Hybrid Module by Bel Fuse - Datasheet Preview — Official preview page of the **APC77130** VDSL Hybrid Module datasheet (Bel Fuse).

Datasheet Details

Part number	APC77130
Manufacturer	Bel Fuse
File Size	186.21 KB
Description	VDSL Hybrid Module
Datasheet	APC77130_BelFuse.pdf
Additional preview pages of the APC77130 datasheet.

APC77130 Product details

Description

VDSL LPF (RX) VDSL HPF (TX) Passband Freq DC to 2.5 MHz 2.8MHz > Stopband Freq 3 MHz > DC to 2.5MHz Attenuation min 50dB 50dB Impedance 100R 100R BLOCK DIAGRAM TIP Protection Filter Splitter APC77131 to APC77134 CMC TXLINE DRIVER TFMR TX FILTER DAC+ Broadcom Chipset BCM6315 BCM6020 DAC- RING RX FILTER RX GAIN ADC+ ADC- APC77130 AGC_CTRL ©2003 Bel Fuse Inc.Specifications subject to change without notice.05.20.03 Bel Fuse Inc.206 Van Vorst Street, Jersey City, NJ 07302

Features

Designed for Broadcom BCM6315 and BCM6020 VDSL chipset Symmetric CPE design Includes 2 wire line interface hybrid, TX and RX filters and AGC control.
1500V Line isolation transformer www. DataSheet4U. com.
Minimum surface mount footprint for increased line card density.
