APC77131 - VDSL Splitter Protection Module

Bel Fuse

The APC77131 by Bel Fuse is a VDSL Splitter Protection Module. Below is the official datasheet preview.

📥 Download Datasheet

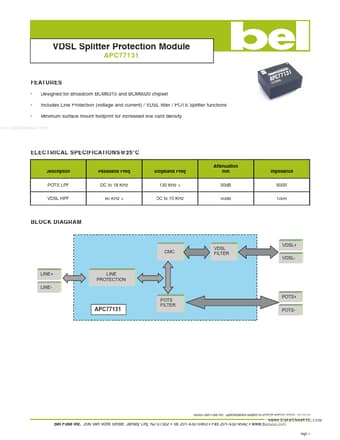

APC77131 VDSL Splitter Protection Module by Bel Fuse - Datasheet Preview — Official preview page of the **APC77131** VDSL Splitter Protection Module datasheet (Bel Fuse).

Datasheet Details

Part number	APC77131
Manufacturer	Bel Fuse
File Size	220.46 KB
Description	VDSL Splitter Protection Module
Datasheet	APC77131_BelFuse.pdf
Additional preview pages of the APC77131 datasheet.

APC77131 Product details

Description

POTS LPF VDSL HPF Passband Freq DC to 18 KHz 90 KHz > Stopband Freq 130 KHz > DC to 15 KHz Attenuation min 50dB 50dB Impedance 600R 100R BLOCK DIAGRAM CMC VDSL FILTER VDSL+ VDSL- LINE+ LINE- LINE PROTECTION APC77131 POTS FILTER POTS+ POTS- ©2003 Bel Fuse Inc.Specifications subject to change without notice.05.20.03 Bel Fuse Inc.206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com Page 1 VDSL Splitter Protection

Features

Designed for Broadcom BCM6315 and BCM6020 chipset Includes Line Protection (voltage and current) / VDSL filter / POTS Splitter functions Minimum surface mount footprint for increased line card density www. DataSheet4U. com.
