APC77133 - VDSL Splitter Protection Module

Bel Fuse

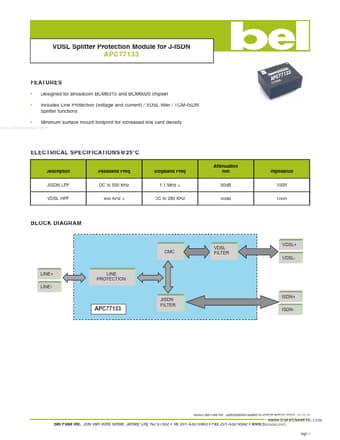

The APC77133 by Bel Fuse is a VDSL Splitter Protection Module. Below is the official datasheet preview.

📥 Download Datasheet

APC77133 VDSL Splitter Protection Module by Bel Fuse - Datasheet Preview — Official preview page of the **APC77133** VDSL Splitter Protection Module datasheet (Bel Fuse).

Datasheet Details

Part number	APC77133
Manufacturer	Bel Fuse
File Size	206.39 KB
Description	VDSL Splitter Protection Module
Datasheet	APC77133_BelFuse.pdf
Additional preview pages of the APC77133 datasheet.

APC77133 Product details

Description

JISDN LPF VDSL HPF Passband Freq DC to 500 KHz 900 KHz > Stopband Freq 1.1 MHz > DC to 280 KHz Attenuation min 50dB 50dB Impedance 100R 100R BLOCK DIAGRAM CMC VDSL FILTER VDSL+ VDSL- LINE+ LINE- LINE PROTECTION APC77133 JISDN FILTER ISDN+ ISDN- ©2003 Bel Fuse Inc.Specifications subject to change without notice.05.20.03 Bel Fuse Inc.206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com Page 1 VDSL Splitter Protec

Features

Designed for Broadcom BCM6315 and BCM6020 chipset Includes Line Protection (voltage and current) / VDSL filter / TCM-ISDN Splitter functions Minimum surface mount footprint for increased line card density www. DataSheet4U. com.
