BF9028DND-A - N-Channel MOSFET

Description

The BF9028DND-A is a Dual N-Channel MOS Field Effect Transistor, which is applied to electronic systems as a power switch.

This device has ESD-protection and low resistance characteristics.

Features

  • z VDS = 20V z ID =6A z Low on-state resistance z RDS(on) = 16.0mΩ TYP(VGS = 4.5V, ID = 3.0A) z RDS(on) = 17.5mΩ TYP(VGS = 3.8V, ID = 3.0A) z RDS(on) = 20.0mΩ TYP(VGS = 3.0V, ID = 3.0A) z RDS(on) = 23.0mΩ TYP(VGS = 2.5V, ID = 3.0A) z Built-in G-S protection diode against ESD z Lead Pb-free and Halogen-free 1 23 4 S1 G1 S2 G2 Absolute Maximum Ratings (Ta=25OC) Parameter Symbol Ratings Unit Drain to Source Voltage VDS 20 V Gate to Source Voltage VGS ±10 V Drain Current (DC) Drain Cur.

📥 Download Datasheet

Datasheet Details

Part number BF9028DND-A
Manufacturer BYD
File Size 163.03 KB
Description N-Channel MOSFET
Datasheet download datasheet BF9028DND-A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BF900 Sicherungshalter Inter Control
BF900 n-channel dual gate MOSFET Siliconix
BF901 Silicon n-channel dual gate MOS-FETs NXP
BF901R Silicon n-channel dual gate MOS-FETs NXP
BF904 N-channel dual gate MOS-FETs NXP

Other Datasheets by BYD

Part Number Description
BF9028DND-GE N-Channel MOSFET
BF9028DNT N-Channel MOSFET
BF9024SPD-M P-Channel MOSFET and Schottky Diode
BF90315SNS N-Channel MOSFET
BF9035SNZ-M N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

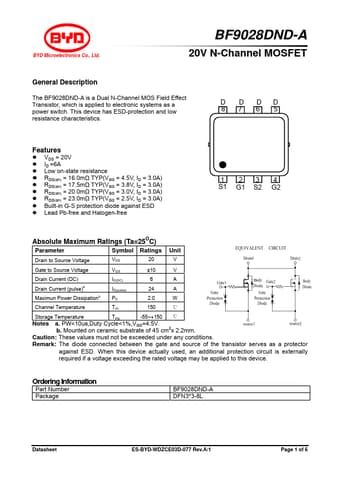

BYD Microelectronics Co., Ltd. BF9028DND-A 20V N-Channel MOSFET General Description The BF9028DND-A is a Dual N-Channel MOS Field Effect Transistor, which is applied to electronic systems as a power switch. This device has ESD-protection and low resistance characteristics. D D DD 87 6 5 Features z VDS = 20V z ID =6A z Low on-state resistance z RDS(on) = 16.0mΩ TYP(VGS = 4.5V, ID = 3.0A) z RDS(on) = 17.5mΩ TYP(VGS = 3.8V, ID = 3.0A) z RDS(on) = 20.0mΩ TYP(VGS = 3.0V, ID = 3.0A) z RDS(on) = 23.0mΩ TYP(VGS = 2.5V, ID = 3.
