4N60A, 4N60 N-Channel Power MOSFET

4N60A Description

SEMICONDUCTOR 4N60 Series RRooHHSS Nell High Power Products N-Channel Power MOSFET (4A, 600Volts) .
The Nell 4N60 is a three-terminal silicon device with current conduction capability of 4A, fast switching speed, low on-state resistance, breakdown vo.

4N60A Features

* RDS(ON) = 2.5Ω@VGS = 10V Ultra low gate charge(20nC max. ) Low reverse transfer capacitance (CRSS = 8pF typical) Fast switching capability 100% avalanche energy specified Improved dv/dt capability 150°C operation temperature D G DS TO-251 (I-PAK) (4N60F) D D G S TO-252 (D-PAK) (4N60G) GDS TO-220AB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 4N60A, 4N60. Please refer to the document for exact specifications by model.

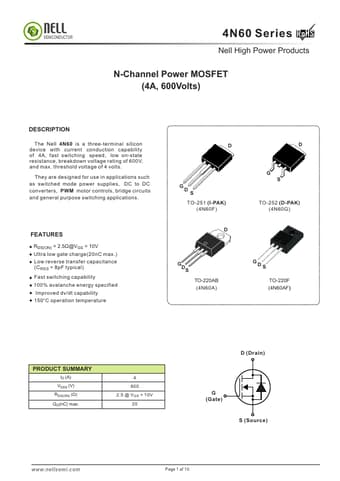

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
4N60A, 4N60
Manufacturer
nELL
File Size
452.42 KB
Datasheet
4N60-nELL.pdf
Description
N-Channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: 4N60A, 4N60.
Please refer to the document for exact specifications by model.
