DS90LV047A - 3-V LVDS Quad CMOS Differential Line Driver

Texas Instruments

The DS90LV047A by Texas Instruments is a 3-V LVDS Quad CMOS Differential Line Driver. Below is the official datasheet preview.

📥 Download Datasheet

DS90LV047A 3-V LVDS Quad CMOS Differential Line Driver by Texas Instruments - Datasheet Preview — Official preview page of the **DS90LV047A** 3-V LVDS Quad CMOS Differential Line Driver datasheet (Texas Instruments).

Datasheet Details

Part number	DS90LV047A
Manufacturer	Texas Instruments
File Size	889.37 KB
Description	3-V LVDS Quad CMOS Differential Line Driver
Datasheet	DS90LV047A-etcTI.pdf

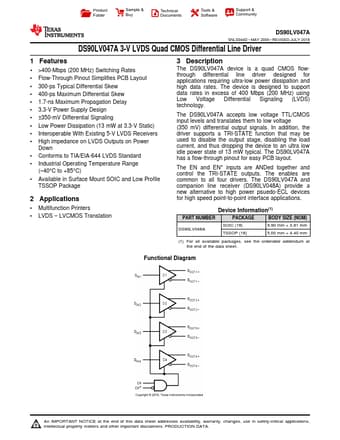

Additional preview pages of the DS90LV047A datasheet.

DS90LV047A Product details

Description

The DS90LV047A device is a quad CMOS flowthrough differential line driver designed for applications requiring ultra-low power dissipation and high data rates.

Features

1 >400-Mbps (200 MHz) Switching Rates.
Flow-Through Pinout Simplifies PCB Layout.
300-ps Typical Differential Skew.
400-ps Maximum Differential Skew.
1.7-ns Maximum Propagation Delay.
3.3-V Power Supply Design.
±350-mV Differential Signaling.
Low Power Dissipation (13 mW at 3.3-V Static).
Interoperable With Existing 5-V LVDS Receivers.
High impedance on LVDS Outputs on Power Down.
Conforms to TIA/E.
