DS90LV019 - 3.3V or 5V LVDS Driver/Receiver

National Semiconductor

Datasheet Details

Part number	DS90LV019
Manufacturer	National Semiconductor
File Size	183.51 KB
Description	3.3V or 5V LVDS Driver/Receiver

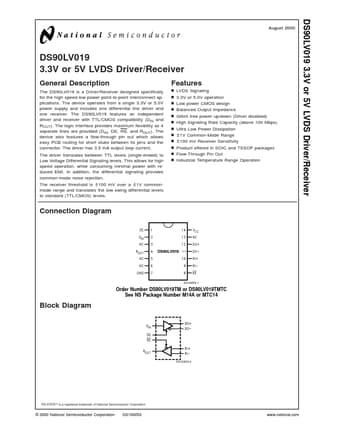

Datasheet	DS90LV019_NationalSemiconductor.pdf

The DS90LV019 is a Driver/Receiver designed specifically for the high speed low power point-to-point interconnect applications.

an independent driver and receiver with TTL/CMOS compatibility (DIN and ROUT). The logic interface provides maximum flexibility as 4 separate lines are provided (DIN, DE, RE, and ROUT). The device also features a flow-through pin out which allows easy PCB routing for short stubs between its pins and the connector. The driver has 3.5 mA output loop current. The driver translates between TTL levels (single-ended) to Low Voltage Differential Signaling levels. This allows for high speed operation, w.
