DS90LV017 - LVDS Single High Speed Differential Driver

Description

The DS90LV017 is a single LVDS driver device optimized for high data rate and low power applications.

The DS90LV017 is a current mode driver allowing power dissipation to remain low even at high frequency.

In addition, the short circuit fault current is also minimized.

Features

  • n n n n n n n n Ultra Low Power Dissipation Operating Range above 155 Mbps Flow-through pinout simplifies PCB layout Conforms to TIA/EIA-644 Standard 8-Lead SOIC Package Saves Space VCM ± 1V center around 1.2V Low Differential Output Swing Typical 340 mV Power Off Protection (outputs in high impedance) Connection Diagram Dual-In-Line DS012900-1 Order Number DS90LV017M See NS Package Number M08A Functional Diagram DS012900-2 TRI-STATE ® is a registered trademark of National Semiconductor Co.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS90LV017A LVDS Single High Speed Differential Driver Texas Instruments
DS90LV011A 3V LVDS Single High Speed Differential Driver Texas Instruments
DS90LV011AH High Temperature 3-V LVDS Differential Driver Texas Instruments
DS90LV011AQ Automotive LVDS Differential Driver Texas Instruments
DS90LV012A 3V LVDS Single CMOS Differential Line Receiver Texas Instruments

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
DS90LV017A LVDS Single High Speed Differential Driver
DS90LV011A 3V LVDS Single High Speed Differential Driver
DS90LV012A 3V LVDS Single CMOS Differential Line Receiver
DS90LV018A 3V LVDS Single CMOS Differential Line Receiver
DS90LV019 3.3V or 5V LVDS Driver/Receiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

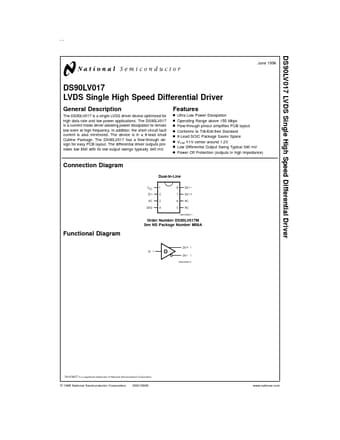

DS90LV017 LVDS Single High Speed Differential Driver June 1998 DS90LV017 LVDS Single High Speed Differential Driver General Description The DS90LV017 is a single LVDS driver device optimized for high data rate and low power applications. The DS90LV017 is a current mode driver allowing power dissipation to remain low even at high frequency. In addition, the short circuit fault current is also minimized. The device is in a 8-lead small Outline Package. The DS90LV017 has a flow-through design for easy PCB layout. The differential driver outputs provides low EMI with its low output swings typically 340 mV.
