DS90LV012A - 3V LVDS Single CMOS Differential Line Receiver

Name: DS90LV012A
SKU: DS90LV012A-217084

National Semiconductor

📥 Download Datasheet

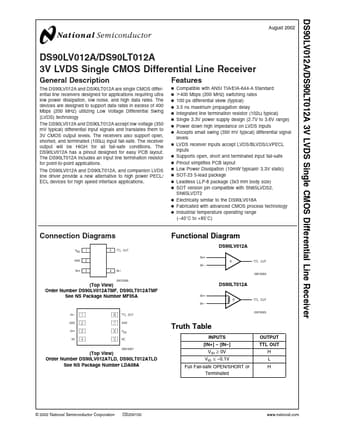

DS90LV012A Datasheet Preview — Preview of DS90LV012A PDF

Datasheet Details

Part number	DS90LV012A
Manufacturer	National Semiconductor
File Size	162.99 KB
Description	3V LVDS Single CMOS Differential Line Receiver
Datasheet	DS90LV012A_NationalSemiconductor.pdf

DS90LV012A Product details

Description

The DS90LV012A and DS90LT012A are single CMOS differential line receivers designed for applications requiring ultra low power dissipation, low noise, and high data rates.

Features

n n n n n n n n n n n n n n n n n n Compatible with ANSI TIA/EIA-644-A Standard > 400 Mbps (200 MHz) switching rates 100 ps differential skew (typical) 3.5 ns maximum propagation delay Integrated line termination resistor (102Ω typical) Single 3.3V power supply design (2.7V to 3.6V range) Power down high impedance on LVDS inputs Accepts small swing (350 mV typical) differential signal levels LVDS receiver inputs accept LVDS/BLVDS/LVPECL inputs Supports open, short and terminated input fail-safe.
