DS90LV049Q - Automotive LVDS Dual Line Driver and Receiver Pair

Texas Instruments

The DS90LV049Q by Texas Instruments is a Automotive LVDS Dual Line Driver and Receiver Pair. Below is the official datasheet preview.

📥 Download Datasheet

DS90LV049Q Automotive LVDS Dual Line Driver and Receiver Pair by Texas Instruments - Datasheet Preview — Official preview page of the **DS90LV049Q** Automotive LVDS Dual Line Driver and Receiver Pair datasheet (Texas Instruments).

Datasheet Details

Part number	DS90LV049Q
Manufacturer	Texas Instruments
File Size	635.69 KB
Description	Automotive LVDS Dual Line Driver and Receiver Pair
Datasheet	DS90LV049Q-etcTI.pdf

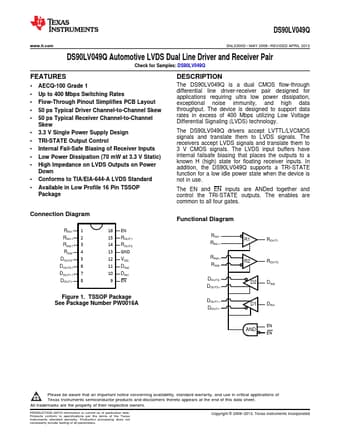

Additional preview pages of the DS90LV049Q datasheet.

DS90LV049Q Product details

Description

The DS90LV049Q is a dual CMOS flow-through differential line driver-receiver pair designed for applications requiring ultra low power dissipation, exceptional noise immunity, and high data throughput.

Features

1.
2 AECQ-100 Grade 1.
Up to 400 Mbps Switching Rates.
Flow-Through Pinout Simplifies PCB Layout.
50 ps Typical Driver Channel-to-Channel Skew.
50 ps Typical Receiver Channel-to-Channel Skew.
3.3 V Single Power Supply Design.
TRI-STATE Output Control.
Internal Fail-Safe Biasing of Receiver Inputs.
Low Power Dissipation (70 mW at 3.3 V Static).
High Impedance on LVDS Outputs on Power Down.
Conforms t.
