ZL30407 - SONET/SDH Network Element PLL

Zarlink Semiconductor Inc

ZL30407 Datasheet Preview — Preview of ZL30407 PDF

Datasheet Details

Part number	ZL30407
Manufacturer	Zarlink Semiconductor Inc
File Size	843.44 KB
Description	SONET/SDH Network Element PLL
Datasheet	ZL30407_ZarlinkSemiconductorInc.pdf

ZL30407 Product details

Description

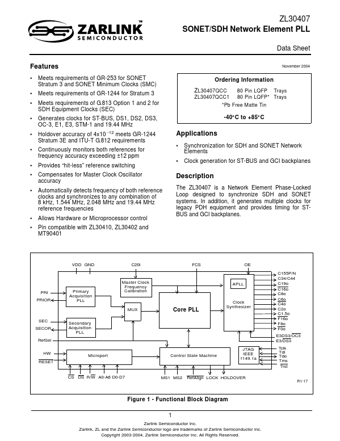

The ZL30407 is a Network Element Phase-Locked Loop designed to synchronize SDH and SONET systems. VDD GND C20i FCS OE PRI PRIOR Primary Acquisition PLL Master Clock Frequency Calibration APLL MUX SEC SECOR RefSel HW RESET Core PLL Clock Synthesizer Secondary Acquisition PLL C155P/N C34/C44 C19o C16o C8o C6o C4o C2o C1.5o F16o F8o F0o E3DS3/OC3 E3/

Features

Meets requirements of GR-253 for SONET Stratum 3 and SONET Minimum Clocks (SMC) Meets requirements of GR-1244 for Stratum 3 Meets requirements of G.813 Option 1 and 2 for SDH Equipment Clocks (SEC) Generates clocks for ST-BUS, DS1, DS2, DS3, OC-3, E1, E3, STM-1 and 19.44 MHz Holdover accuracy of 4x10 -12 meets GR-1244 Stratum 3E and ITU-T G.812 requirements Continuously monitors both references for frequenc.
