ZL30106 SONET/SDH/PDH Network Interface DPLL

ZL30106 Description

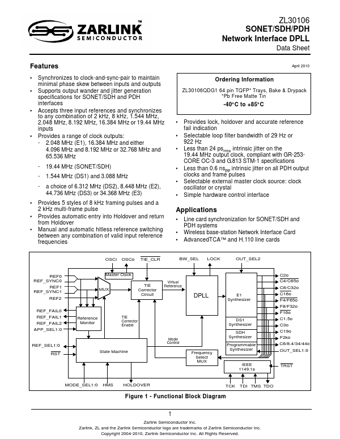

ZL30106 SONET/SDH/PDH Network Interface DPLL Data Sheet .
The ZL30106 SONET/SDH/PDH network interface Digital Phase-Locked Loop (DPLL) provides timing and synchronization for SONET/SDH and PDH network interfa.

ZL30106 Features

* Synchronizes to clock-and-sync-pair to maintain minimal phase skew between inputs and outputs
* Supports output wander and jitter generation specifications for SONET/SDH and PDH interfaces
* Accepts three input references and synchronizes to any combination of 2 kHz, 8 kHz,

ZL30106 Applications

* Line card synchronization for SONET/SDH and PDH systems
* Wireless base-station Network Interface Card
* AdvancedTCA™ and H.110 line cards OSCi OSCo TIE_CLR BW_SEL LOCK OUT_SEL2 REF0 REF_SYNC0 REF1 REF_SYNC1 REF2 REF_FAIL0 REF_FAIL1 REF_FAIL2 APP_SEL1:0 REF_SEL1:0 RST
