ZL30105 T1/E1/SDH Stratum 3 Redundant System Clock Synchronizer

ZL30105 Description

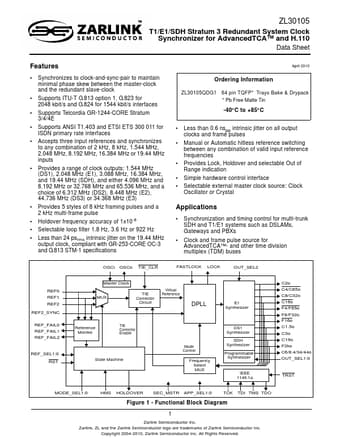

ZL30105 T1/E1/SDH Stratum 3 Redundant System Clock Synchronizer for AdvancedTCA™ and H.110 Data Sheet .
The ZL30105 SDH/PDH System Synchronizer contains a digital phase-locked loop (DPLL), which provides timing and synchronization for SDH and T1/E1 trans.

ZL30105 Features

* Synchronizes to clock-and-sync-pair to maintain minimal phase skew between the master-clock and the redundant slave-clock
* Supports ITU-T G.813 option 1, G.823 for 2048 kbit/s and G.824 for 1544 kbit/s interfaces
* Supports Telcordia GR-1244-CORE Stratum 3/4/4E
* S

ZL30105 Applications

* Synchronization and timing control for multi-trunk SDH and T1/E1 systems such as DSLAMs, Gateways and PBXs
* Clock and frame pulse source for AdvancedTCA™- and other time division multiplex (TDM) buses OSCi OSCo TIE_CLR FASTLOCK LOCK OUT_SEL2 REF0 REF1 REF2 REF2_SYNC REF_FAIL0
