ZL30101 T1/E1 Stratum 3 System Synchronizer

ZL30101 Description

ZL30101 T1/E1 Stratum 3 System Synchronizer Data Sheet .
The ZL30101 Stratum 3 System Synchronizer contains a digital phase-locked loop (DPLL), which provides timing and synchronization for multi-trunk T1 an.

ZL30101 Features

* April 2010
* Supports Telcordia GR-1244-CORE Stratum 3
* Supports G.823 and G.824 for 2048 kbit/s and 1544 kbit/s interfaces
* Supports ANSI T1.403 and ETSI ETS 300 011 for ISDN primary rate interfaces
* Simple hardware control interface
* Accepts two input

ZL30101 Applications

* Synchronization and timing control for multi-trunk DS1/E1 systems such as DSLAMs, gateways and PBXs

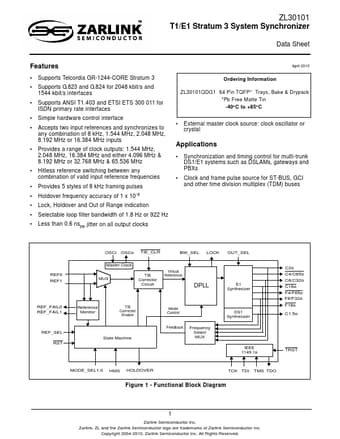

* Clock and frame pulse source for ST-BUS, GCI and other time division multiplex (TDM) buses REF0 REF1 OSCi OSCo TIE_CLR BW_SEL LOCK OUT_SEL Master Clock MUX TIE Corrector Circ
