YD2111 - 3V AM/FM TUNER

YD2111 Description

www.DataSheet4U.com YOUDA INTEGRATED CIRCUIT YD2111 3V AM/FM ONE CHIP TUNER IC *YD2111 .
The YD2111 are AM/FM 1 chip tuner ICs, which are designed for portable radios and 3V headphone radios. For NEW FCC. AM Detector co.

YD2111 Features

* For NEW FCC.
* AM Detector coil, FM IFT, IF coupling condenser are not needed.
* For adopting ceramic discriminator, it is not necessary to adjust the FM quad detector circuit.
* Built-in FM MPX VCO circuit.
* Built-in varactor diode for AFC.
* Built-in AM low cut circuit.
* L

📥 Download Datasheet

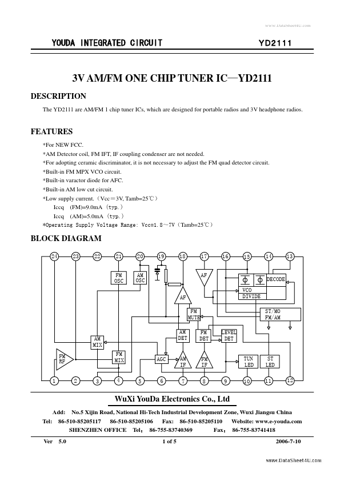

Preview of YD2111 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YD2111
Manufacturer
Wuxi Youda electronics
File Size
124.81 KB
Datasheet
YD2111_WuxiYouda.pdf
Description
3V AM/FM TUNER
