YD2030 - 18W Hi-Fi Audio Amplifier

YD2030 Description

( DataSheet : www.DataSheet4U.com ) YOUDA INTEGRATED CIRCUIT YD2030 18W HI-FI AUDIO AMPLIFIER¡ª .
The YD2030 is a monolithic audio power amplifier integrated circuit. Very low external component required. High Current ou.

YD2030 Features

* Very low external component required.
* High Current output and high operating voltage.
* Low harmonic and crossover distortion.
* Built-in Over temperature protection.
* Short circuit protection between all pins.
* Safety Operating Area for output transistors. BLOCK DIAGRAM +

📥 Download Datasheet

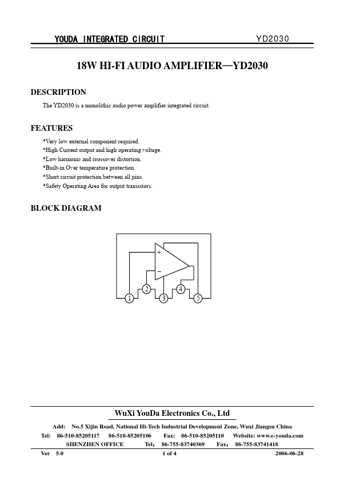

Preview of YD2030 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YD2030
Manufacturer
Wuxi Youda Electronics
File Size
162.93 KB
Datasheet
YD2030_WuxiYoudaElectronics.pdf
Description
18W Hi-Fi Audio Amplifier
