YD2073 - DUAL CHANNEL POWER AMPLIFIER

YD2073 Description

www.DataSheet4U.com YOUDA INTEGRATED CIRCUIT YD2073 DUAL CHANNEL POWER AMPLIFIER * *YD2073 .
The YD2073 is a monolithic integrated audio amplifier in a 8-pin plastic dual in line package.

YD2073 Features

* Wide operating supply voltage :VCC=1.8V～5V
* Low crossover distortion
* Low quiescent circuit current
* Bridge/stereo configuration BLOCK DIAGRAM 8 _ 7 + 6 + 5 _ Vcc GND 1 2 3 4 ABSOLUTE MAXIMUM RATINGS PARAMETER Supply Voltage Output Peak Current Power Dissipation Operating Te

📥 Download Datasheet

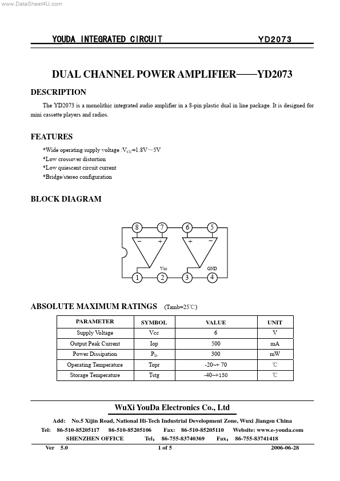

Preview of YD2073 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YD2073
Manufacturer
Wuxi Youda electronics
File Size
165.13 KB
Datasheet
YD2073_WuxiYoudaelectronics.pdf
Description
DUAL CHANNEL POWER AMPLIFIER
