YD2030A - 20W Hi-Fi Audio Amplifier

YD2030A Description

( DataSheet : www.DataSheet4U.com ) YOUDA INTEGRATED CIRCUIT YD2030A 20W HI-FI AUDIO AMPLIFIER¡ª .
The YD2030A is a monolithic audio power amplifier integrated circuit. Very low external component required. High Current.

YD2030A Features

* Very low external component required.
* High Current output and high operating voltage.
* Low harmonic and crossover distortion.
* Built-in Over temperature protection.
* Short circuit protection between all pins.
* Safety Operating Area for output transistors. BLOCK DIAGRAM +

📥 Download Datasheet

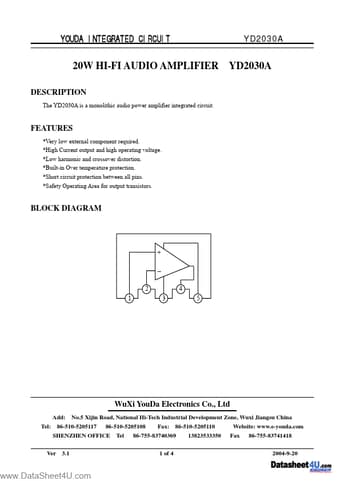

Preview of YD2030A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YD2030A
Manufacturer
Wuxi Youda Electronics
File Size
139.04 KB
Datasheet
YD2030A_WuxiYoudaElectronics.pdf
Description
20W Hi-Fi Audio Amplifier
