YD2025A - 2.4W Stereo Audio Power Amplifier

General Description

The YD2025A is a monolithic integrated circuit consisting of a 2-channel power amplifier.

It is suitable for stereo and bridge amplifier application of radio cassette tape recorder.

Key Features

  • High output power Stereo: Po=2.4W(Typ) at Vcc=9V, RL=4¦¸ Bridge: Po=4.7W(Typ) at Vcc=9V, RL=8¦¸.
  • Small shock noise at the time of power on/off due to a built-in muting circuit.
  • Good ripple rejection due to a built-in ripple filter.
  • Good channel separation.
  • Soft tone at the time of output saturation.
  • Closed loop voltage gain fixed 45dB(Bridge: 51dB) but availability with external resistor added.
  • Minimum number of external parts required BLOCK.

📥 Download Datasheet

Datasheet Details

Part number YD2025A
Manufacturer Wuxi Youda
File Size 41.85 KB
Description 2.4W Stereo Audio Power Amplifier
Datasheet download datasheet YD2025A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
YD2025 2.3W Stereo Audio Amplifier Wuxi Youda Electronics
YD2025H 2.4W Stereo Audio Amplifier Wuxi Youda Electronics
YD2024 3.5W Stereo Audio Amplifier Wuxi Youda Electronics
YD2030 18W Hi-Fi Audio Amplifier Wuxi Youda Electronics
YD2030A 20W Hi-Fi Audio Amplifier Wuxi Youda Electronics

Other Datasheets by Wuxi Youda

Part Number Description
YD2915 TV VIF & SIF & Deflection System

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

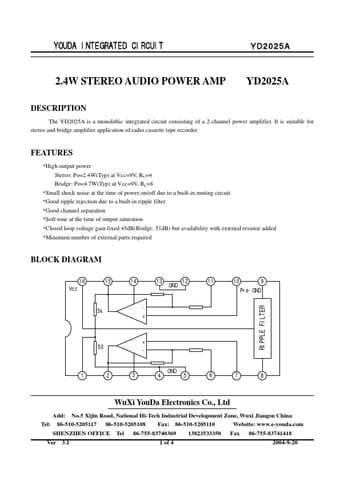

YOUDA INTEGRATED CIRCUIT YD2025A 2.4W STEREO AUDIO POWER AMP¡ª¡ DESCRIPTION YD2025A The YD2025A is a monolithic integrated circuit consisting of a 2-channel power amplifier. It is suitable for stereo and bridge amplifier application of radio cassette tape recorder. FEATURES *High output power Stereo: Po=2.4W(Typ) at Vcc=9V, RL=4¦¸ Bridge: Po=4.
