YD2025H - 2.4W Stereo Audio Amplifier

YD2025H Description

YOUDA INTEGRATED CIRCUIT YD2025H 2.4W STEREO AUDIO AMPLIFIER * *YD2025H .
The YD2025H is a monolithic integrated audio amplifier in a 16-pin plastic dual in line package.

YD2025H Features

* Working Voltage down to 3V
* Few External components
* High channel isolation
* Voltage gain up to 45dB (Adjustable with external resistor)
* Soft clipping
* Internal Thermal protection BLOCK DIAGRAM 12 Vcc 11 5k 10 + TAB 987 Pre-GND RIPPLE FILTER + 50 - 1 2 3 TAB 4 5 6

📥 Download Datasheet

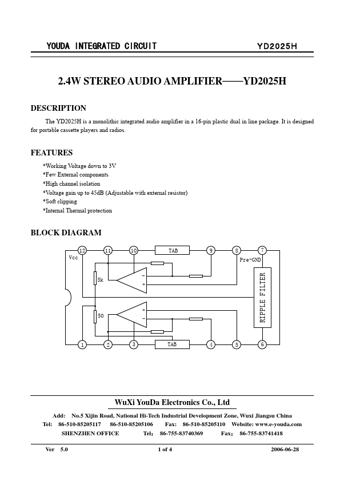

Preview of YD2025H PDF
