CGHV14250 - GaN HEMT

Product Overview

Wolfspeed

Datasheet Details

Part number	CGHV14250
Manufacturer	Wolfspeed
File Size	1.82 MB
Description	GaN HEMT
Datasheet	CGHV14250 Datasheet

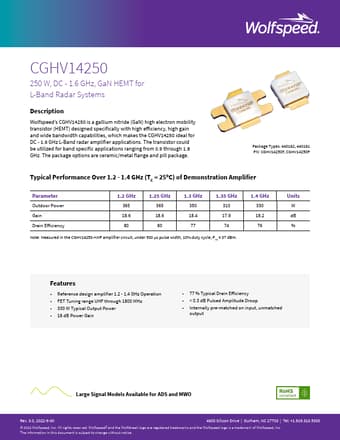

Additional preview pages of the CGHV14250 datasheet.

Product details

Description

Wolfspeed’s CGHV14250 is a gallium nitride (GaN) high electron mobility transistor (HEMT) designed specifically with high efficiency, high gain and wide bandwidth capabilities, which makes the CGHV14250 ideal for DC - 1.6 GHz L-Band radar amplifier applications.

Features

Reference design amplifier 1.2 - 1.4 GHz Operation.
FET Tuning range UHF through 1800 MHz.
330 W Typical Output Power.
18 dB Power Gain.
77 % Typical Drain Efficiency.
< 0.3 dB Pulsed Amplitude Droop.
Internally pre-matched on input, unmatched output Large Signal Models Available for ADS and MWO Rev. 3.0, 2022-9-30 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 © 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed.
