CGHV27015S - GaN HEMT

Wolfspeed

📥 Download Datasheet

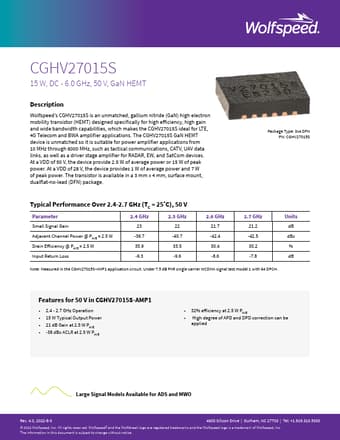

CGHV27015S Datasheet Preview — Preview of CGHV27015S PDF

Datasheet Details

Part number	CGHV27015S
Manufacturer	Wolfspeed
File Size	1.64 MB
Description	GaN HEMT
Datasheet	CGHV27015S-Wolfspeed.pdf

CGHV27015S Product details

Description

Wolfspeed’s CGHV27015S is an unmatched, gallium nitride (GaN) high electron mobility transistor (HEMT) designed specifically for high efficiency, high gain and wide bandwidth capabilities, which makes the CGHV27015S ideal for LTE, 4G Telecom and BWA amplifier applications.

Features

for 50 V in CGHV27015S-AMP1.
2.4 - 2.7 GHz Operation.
15 W Typical Output Power.
21 dB Gain at 2.5 W PAVE.
-38 dBc ACLR at 2.5 W PAVE.
32% efficiency at 2.5 W PAVE.
High degree of APD and DPD correction can be applied Large Signal Models Available for ADS and MWO Rev. 4.0, 2022-8-3 4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300 © 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered tra.
