VP3379 - High-Efficiency Boost DC/DC Converter

Product Overview

Part number	VP3379
Manufacturer	Viva Electronics
File Size	937.18 KB
Description	High-Efficiency Boost DC/DC Converter
Datasheet	VP3379 Datasheet

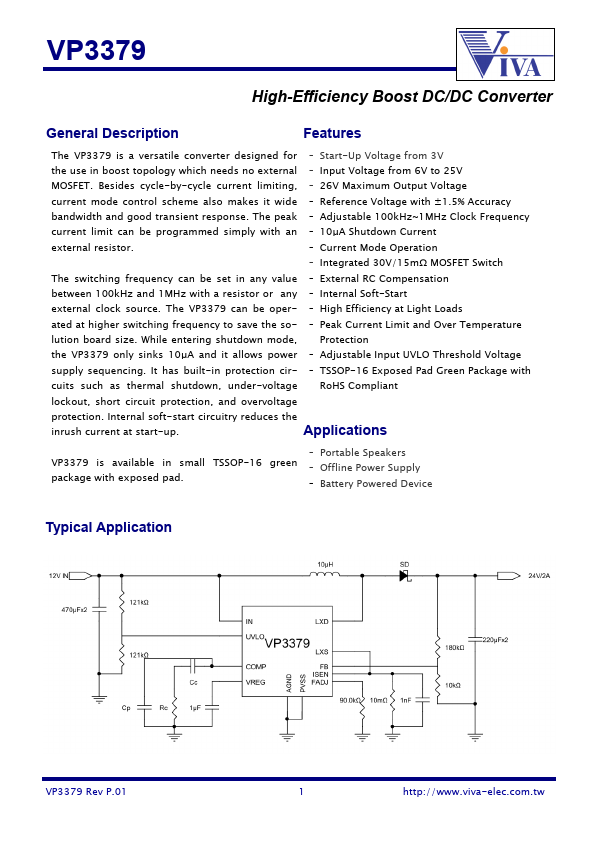

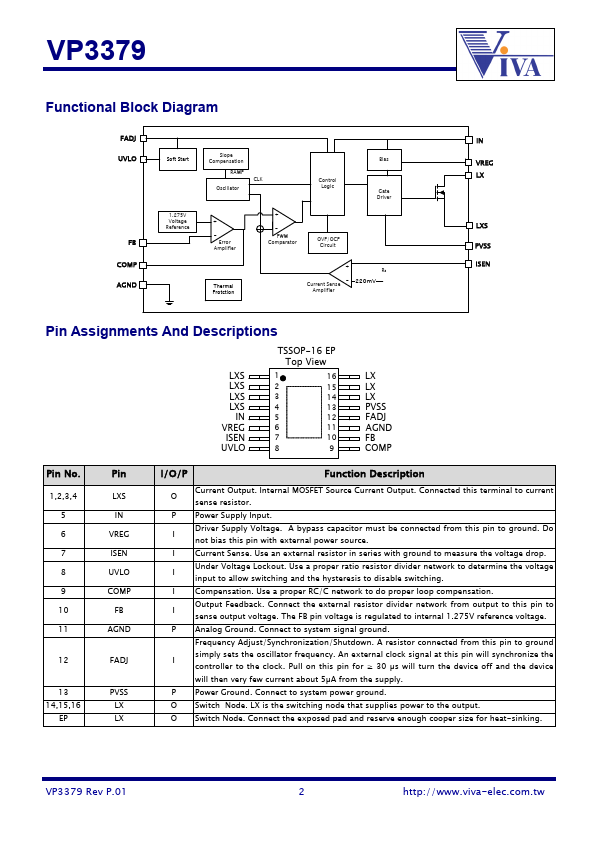

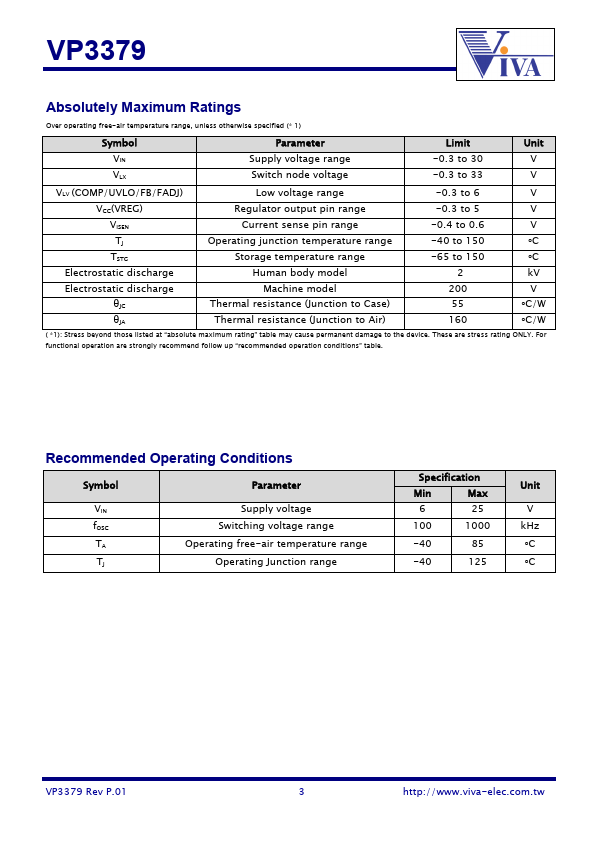

Additional preview pages of the VP3379 datasheet.

The VP3379 is a versatile converter designed for - Start-Up Voltage from 3V the use in boost topology which needs no external - Input Voltage from 6V to 25V MOSFET. Besides cycle-by-cycle current limiting, - 26V Maximum Output Voltage current mode control scheme also makes it wide - Reference Voltage with ± 1.5% Accuracy bandwidth and good transient response. The peak - Adjustable 100kHz~1MHz Clock Frequency current limit can be programmed simply with an - 10μA Shutdown Current external r.
