VP3186 - 5.5A/12V/1MHz Boost Converter

Product Overview

Part number	VP3186
Manufacturer	Viva Electronics
File Size	291.80 KB
Description	5.5A/12V/1MHz Boost Converter

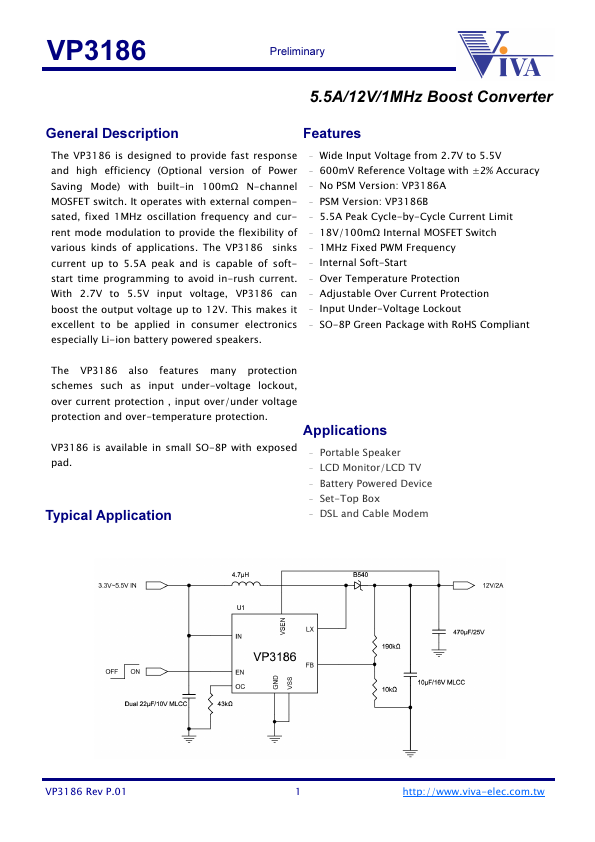

Datasheet	VP3186 Datasheet

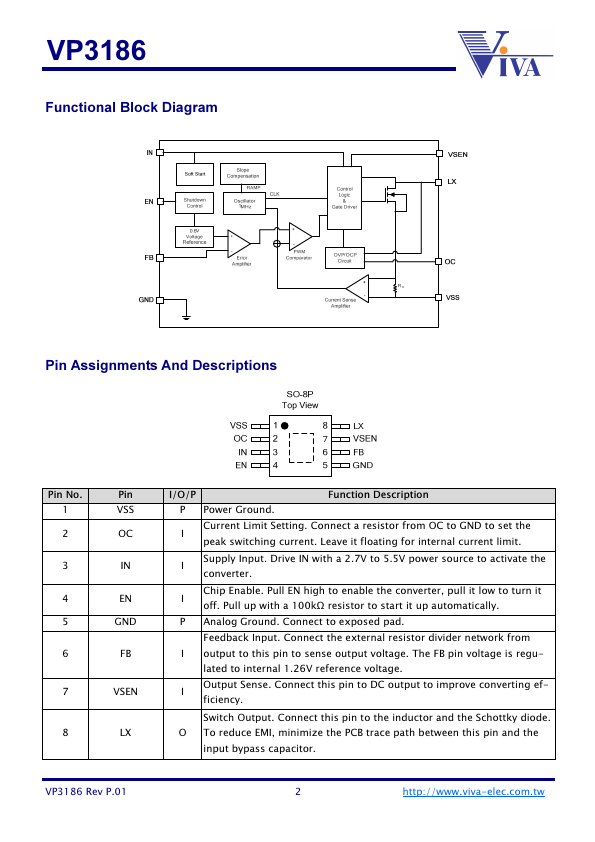

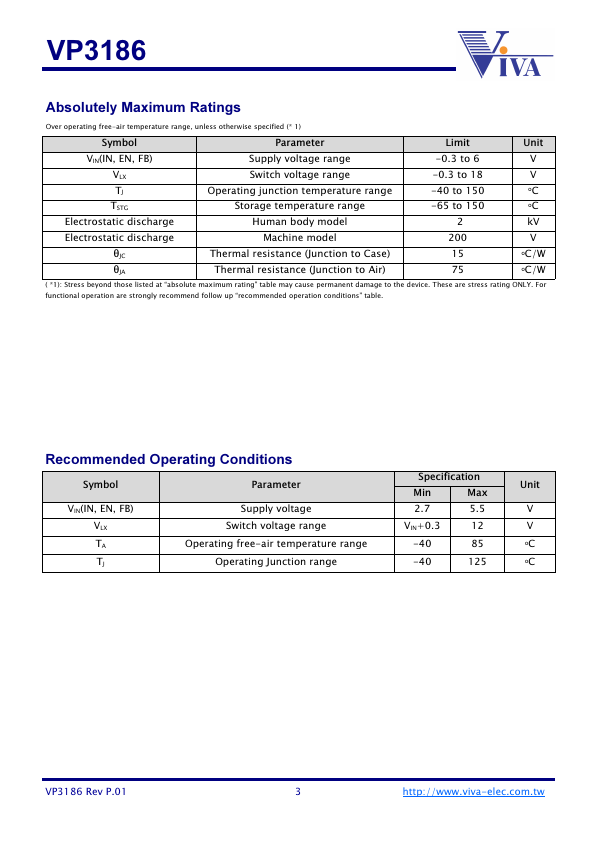

Additional preview pages of the VP3186 datasheet.

The VP3186 is designed to provide fast response and high efficiency (Optional version of Power Saving Mode) with built-in 100mΩ N-channel MOSFET switch. It operates with external compensated, fixed 1MHz oscillation frequency and current mode modulation to provide the flexibility of various kinds of.
