VP3187 - 5.5A/12V/1MHz Boost Converter

Product Overview

Part number	VP3187
Manufacturer	Viva Electronics
File Size	676.14 KB
Description	5.5A/12V/1MHz Boost Converter
Datasheet	VP3187 Datasheet

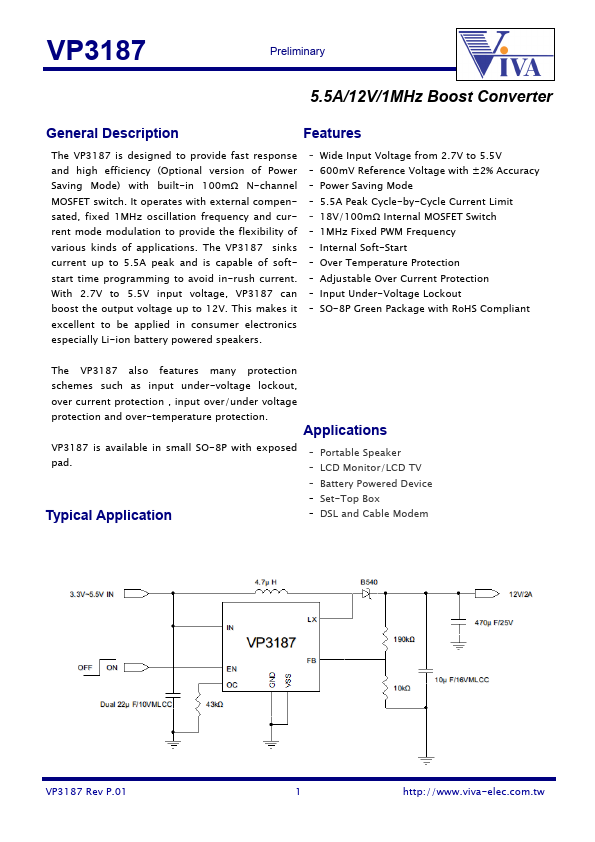

Additional preview pages of the VP3187 datasheet.

The VP3187 is designed to provide fast response and high efficiency (Optional version of Power Saving Mode) with built-in 100mΩ N-channel MOSFET switch. It operates with external compensated, fixed 1MHz oscillation frequency and current mode modulation to provide the flexibility of various kinds of.
